Lithium Polymer Battery 502030 250mAh 3.7V
  • Lithium Polymer Battery 502030 250mAh 3.7V
  • Lithium Polymer Battery 502030 250mAh 3.7V
  • Lithium Polymer Battery 502030 250mAh 3.7V
  • Lithium Polymer Battery 502030 250mAh 3.7V
Lithium Polymer Battery 502030 250mAh 3.7VLithium Polymer Battery 502030 250mAh 3.7VLithium Polymer Battery 502030 250mAh 3.7VLithium Polymer Battery 502030 250mAh 3.7V

Lithium Polymer Battery 502030 250mAh 3.7V


    Brand Name: Godson or OEM

    Type: Li-polymer Battery

    Nominal Capacity: 250mAh

    Nominal Voltage: 3.7V

    Size: 5.0*20*30mm

    Weight: ≈9g

    Cycle life: ≥ 500 times

    Place of Origin: Guangdong, China (Mainland)



Lithium Polymer Battery 502030 250mAh 3.7V

Nominal Capacity: 250mAh

Nominal Voltage: 3.7V

Size: 5.0*20*30mm

Weight: ≈9g

Cycle life: ≥ 500 times



Product performance:

1. Good safety performance. Built in circuit protection board, with short circuit, overcharge,over discharge, shock, vibration, acupuncture, high temperature,no explosion ,etc.

2. Stable performance. Long cycle life, after 500 times of ontinuous charge and discharge,the battery capacity shall not be less than 80% of the rated capacity.

3. Small thickness and high volume utilization. Polymer lithium battery overcomes Lithium battery in the thickness of the bottleneck, to achieve ultra-thin settings, and can assemble it into a credit card. Polymer cell can achieve thickness up to less than 1 mm, in line with the current demand for mobile phones.

4. Light weight. Polymer lithium battery does not need to use metal shell as outer packaging.In quality, it is 40% lighter than that of steel shell lithium battery with the same capacity shell batteries are 20% lighter.

5. Quality assurance. It adopts A-product cell with high capacity and low internal resistance.

6. Shape can be customized. Polymer lithium battery models and capacities are available,it has strong applicability.

7. No memory effect. It can be charged and discharged at any time.


Application : lighting, backup power supply, wind energy storage, communication equipment, IT products, IC card terminal, GPS system, LED lights, medical equipment,instrumentation, beauty and hair products, electric toys, flashlight, miner's lamp, agricultural machinery equipment, electric tools, etc.



Performance Curves of Lithium Cell:

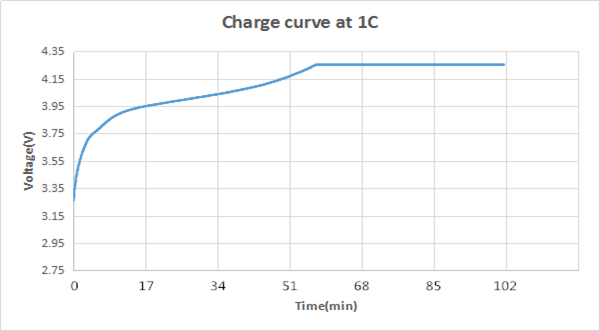

1.Lithium Cell Charge Curve (Charge at 1C)

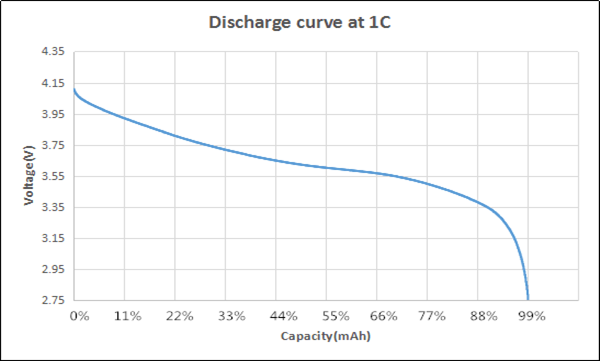

2. Lithium Cell Discharge Curve (Discharge at 1C )

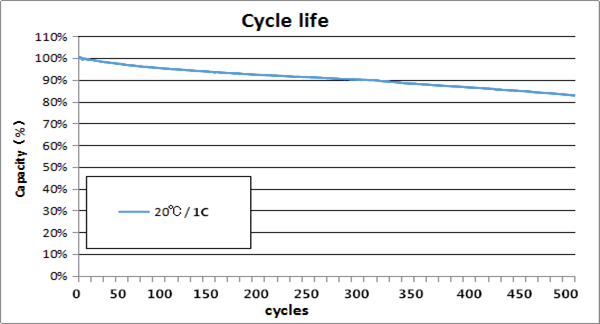

3. Lithium Cell Cycle Life Curve

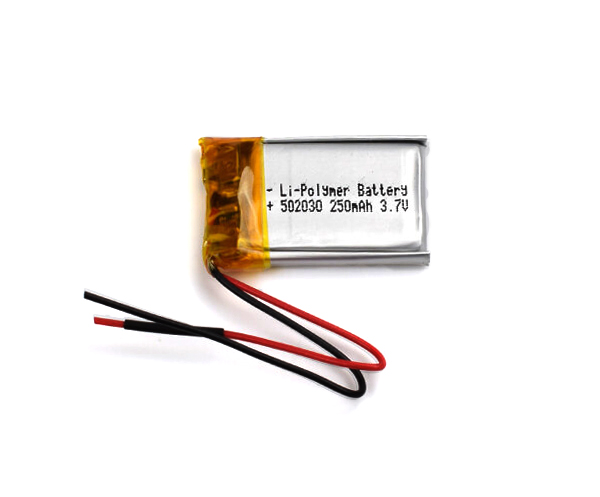

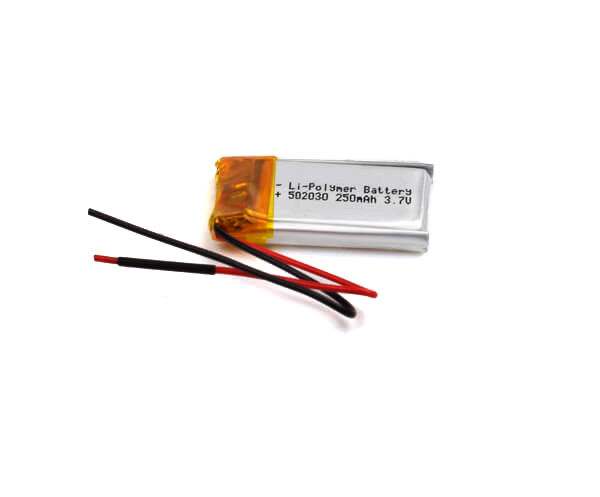

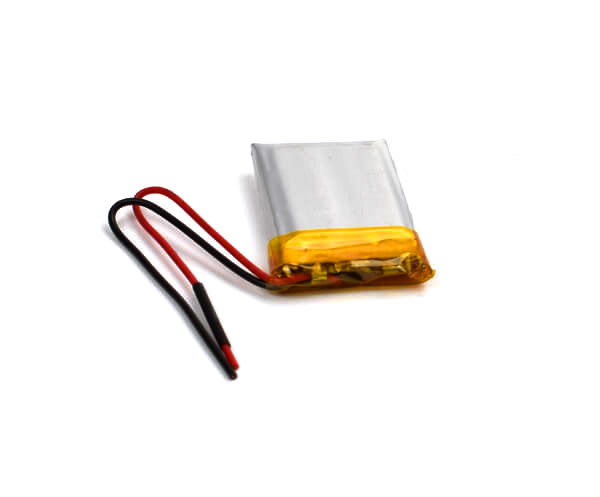

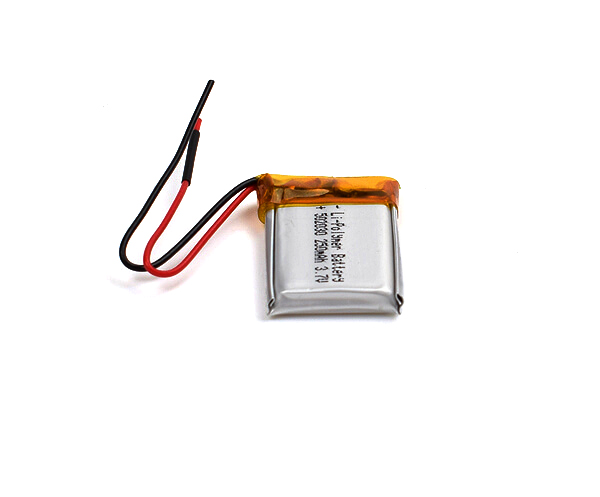

Battery Pictures:
