LiSOCL2 Cylindrical  Battery
  • LiSOCL2 Cylindrical  Battery
LiSOCL2 Cylindrical  Battery

LiSOCL2 Cylindrical Battery

    Battery Features:

    ■Long shelf life, which is more than 10 years;

    ■Wide operating temperature range from -60℃ to +85℃;

    ■Stable operating voltage and loading voltage;

    ■Available with small, medium and high pulse discharge current. Available

    series including bobbin type, spiral type and battery packs.

    ■With unique performance in wet environment by adopting stainless steel

    material, laser and hermetic glass-to-metal welding sealed;

    ■Long service life of above 5 years; Could be up to more than 10 years in

    some special application;

    ■High energy density, could reach more than 650Wh/Kg, which is about 3-10

    times of other series lithium battery;

    ■Complying with UL, SGS, CE, and UN38.3.


Application:

1. Signal lights and the post indicator transfer

2. Intelligent instruments

3. Smoke detector

4. Security device

5. Portable devices

6. Lighting

7. Medical equipment

8. Wireless and other military equipment

9. Water, gas and electricity meters

10. Memory backup power sources

11. Archery tracer nock


1. Model List of ER Series(Bobbin Type)

Model List Of ER Series(Bobbin Type)

Model

Nominal

  Voltage
     (V)

Discharge   Cut-off

    Voltage

       (V)

Nominal

  Capacity

   (mAh)

Max Continuous

     Discharge

      Current

         (mA)

Max Pulse

   Discharge

     Current

         (mA)

Max
   Dimension

        (mm)

Weight
 (g)

Operating
  Temperature
 (℃)

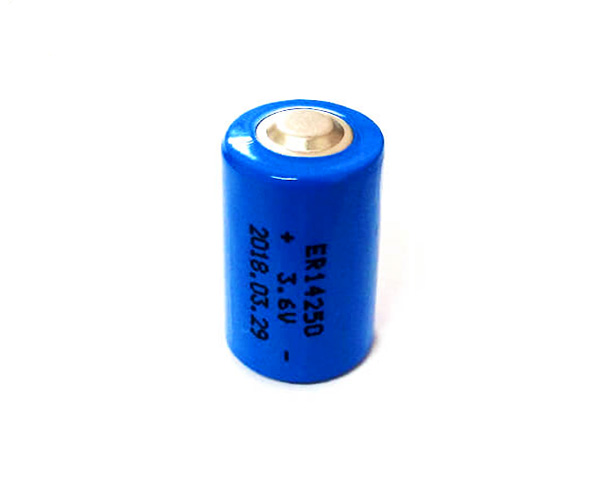

ER14250

3.6

2.0

1200

25

50

14.5x25.4

11.0

-60 to +85

ER18505

3.6

2.0

4000

100

200

18.5x50.5

32.0

-60 to +85

ER14505

3.6

2.0

2700

50

100

14.5x50.5

19.0

-60 to +85

ER14335

3.6

2.0

1650

40

80

14.5x33.5

13.0

-60 to +85

ER34615

3.6

2.0

19000

230

400

34.0x61.5

107

-60 to +85

ER17335

3.6

2.0

2200

100

200

17.0x45.0

19

-60 to +85

ER26500

3.6

2.0

9000

150

300

26.2x50.0

55

-60 to +85


2. Model List of ER Series(SpiralType)

Model List Of ER Series(Spiral Type)

Model

Nominal
 Voltage

     (V)

Discharge

   Cut-off

   Voltage
       (V)

Nominal

  Capacity
   (mAh)

Max Continuous

       Discharge

        Current
           (mA)

Max Pulse

   Discharge

    Current
       (mA)

Max
Dimension
(mm)

Weight

     (g)

Operating

  Temperature
       (℃)

ER34615M

3.6

2.0

14500

2000

4000

34.0x61.5

110.0

-60 to +85

ER17335M

3.6

2.0

1500

1500

3000

17.0x34.5

20.0

-60 to +85

ER26500M

3.6

2.0

6500

1500

2500

26.2x50.0

55.0

-60 to +85

ER18505M

3.6

2.0

3500

1000

2000

18.5x50.5

32.0

-60 to +85

ER14250M

3.6

2.0

800

100

200

14.5x25.5

11.0

-60 to +85

ER14505M

3.6

2.0

2200

400

1000

14.5x50.5

19.0

-60 to +85

ER14335M

3.6

2.0

1300

200

400

14.5x33.5

15.0

-60 to +85
