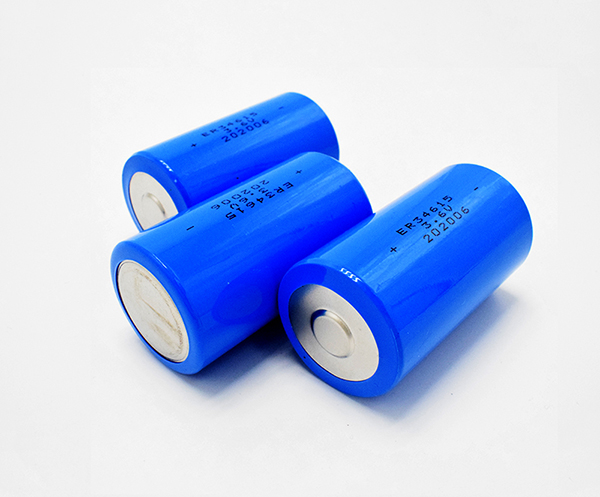

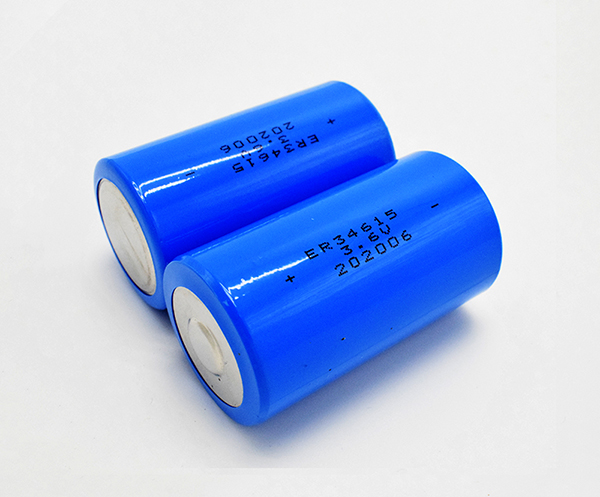

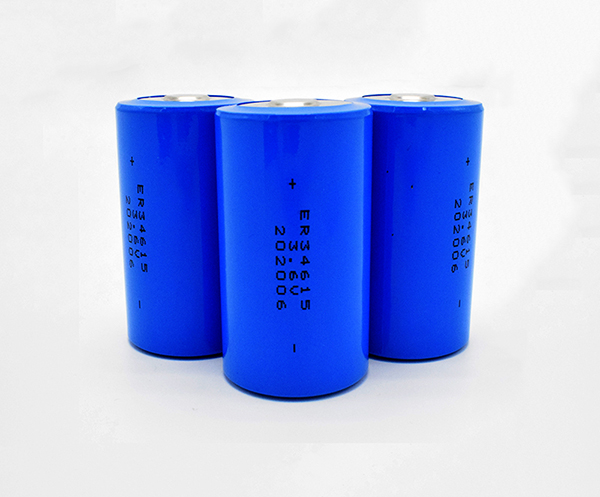

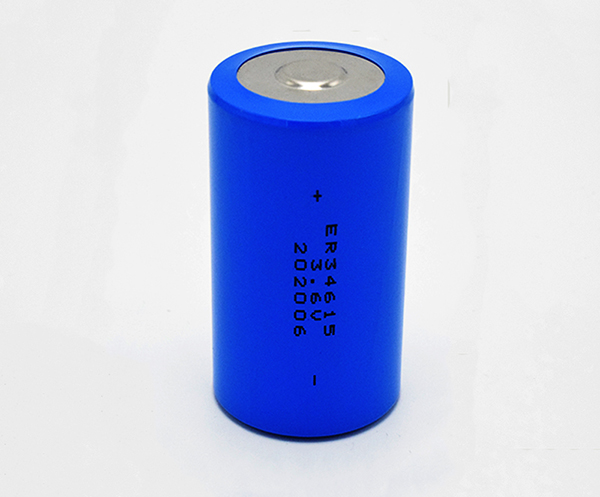

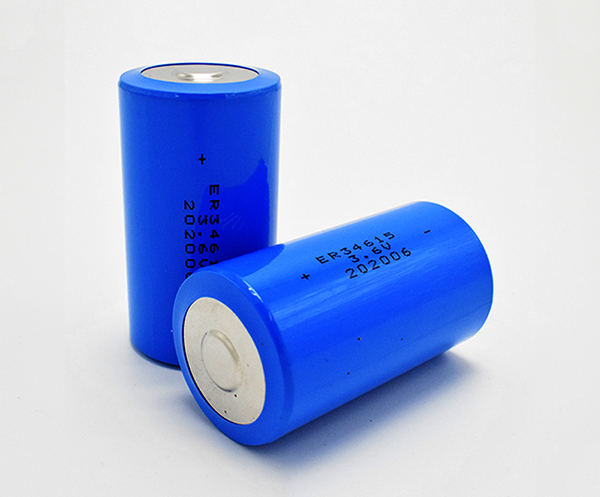

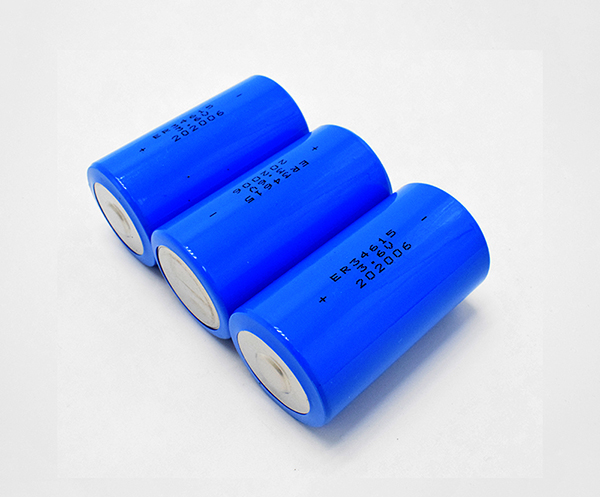

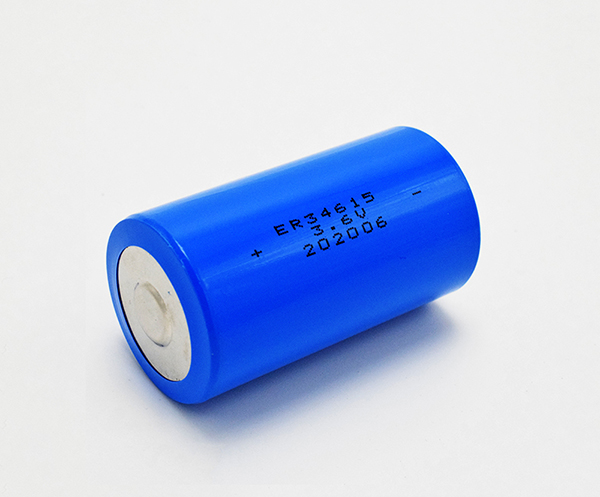

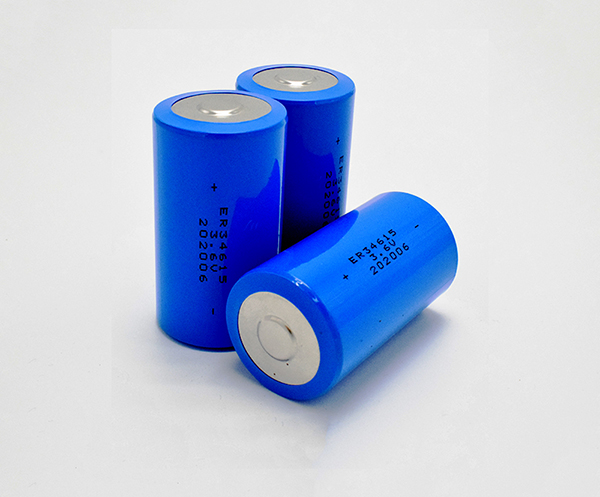

LiSOCL2 Battery ER34615 3.6V

    Model NO:ER34615

    Nominal capacity::19Ah

    Nominal voltage: 3.6V

    Weight:Approx. 107g

    Dimensions:34.5(D) * 61.5(H) mm

    Max. continuous current:230mA

    Max. pulse capacity: 400mA

    Storage(recommended):Max. 30℃

    (For more severe condition, please consult GODSON)

    Operating temperature: -60~+85℃

Battery Testing:

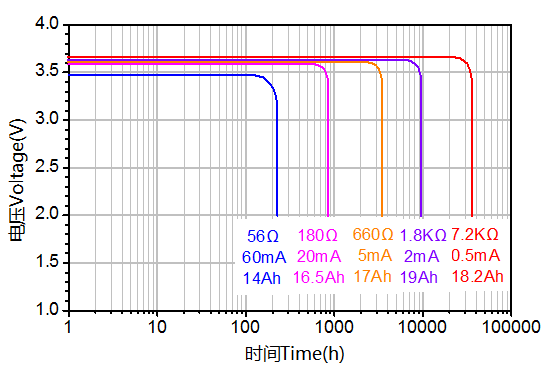

1. Discharge Characteristics(+25℃)

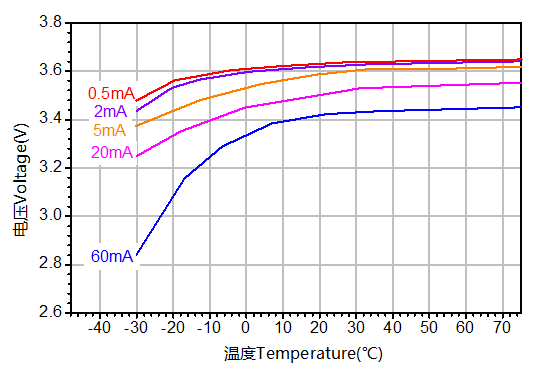

2. Voltage VS Temperature

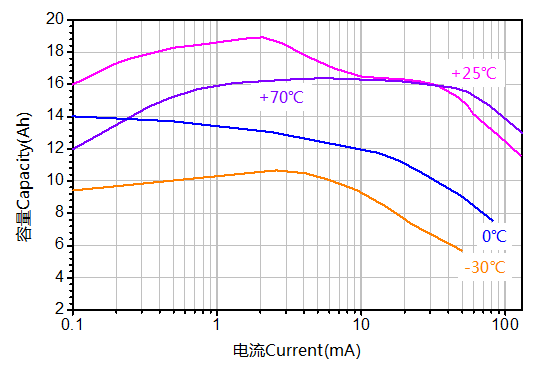

3. Capacity VS Current

Battery Features:

■Long shelf life, which is more than 10 years;

■Wide operating temperature range from -60℃ to +85℃;

■Stable operating voltage and loading voltage;

■Available with small, medium and high pulse discharge current. Available

series including bobbin type, spiral type and battery packs.

■With unique performance in wet environment by adopting stainless steel

material, laser and hermetic glass-to-metal welding sealed;

■Long service life of above 5 years; Could be up to more than 10 years in

some special application;

■High energy density, could reach more than 650Wh/Kg, which is about 3-10

times of other series lithium battery;

■Complying with UL, SGS, CE, and UN38.3.


1. Signal lights and the post indicator transfer

2. Intelligent instruments

3. Smoke detector

4. Security device

5. Portable devices

6. Lighting

7. Medical equipment

8. Wireless and other military equipment

9. Water, gas and electricity meters

10. Memory backup power sources

11. Archery tracer nock
