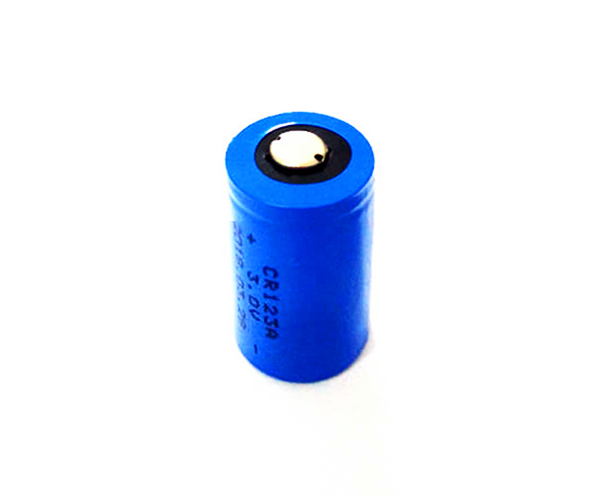

LiMnO2 Cylindrical Battery

    Battery Features:

    ■Long shelf life, which is more than 10 years;

    ■Wide operating temperature range from -60℃ to +85℃;

    ■Stable operating voltage and loading voltage;

    ■Available with small, medium and high pulse discharge current. Available

    series including bobbin type, spiral type and battery packs.

    ■With unique performance in wet environment by adopting stainless steel

    material, laser and hermetic glass-to-metal welding sealed;

    ■Long service life of above 5 years; Could be up to more than 10 years in

    some special application;

    ■High energy density, could reach more than 650Wh/Kg, which is about 3-10

    times of other series lithium battery;

    ■Complying with UL, SGS, CE, and UN38.3.


Application:

1. Signal lights and the post indicator transfer

2. Intelligent instruments

3. Smoke detector

4. Security device

5. Portable devices

6. Lighting

7. Medical equipment

8. Wireless and other military equipment

9. Water, gas and electricity meters

10. Memory backup power sources

11. Archery tracer nock


Model List Of CR Series

Model List Of CR Series

Model

Nominal     Voltage

    (V)

Discharge

     Cut-off

     Voltage
        (V)

Nominal
 Capacity
   (mAh)

Max Continuous    Discharge

       Current
        (mA)

Max Pulse
 Discharge   Current
  (mA)

Max

   Dimension
       (mm)

Weight
   (g)

Operating
   Temperature
   (℃)

CR123A

3.0

2.0

1400

1000

3000

17x34.5

16.5

-40 to +70

CR123A

3.0

2.0

1600

1500

3500

17x34.5

16.5

-40 to +70

CR2

3.0

2.0

850

800

1500

15.5x27.0

11.0

-40 to +70

CR14250

3.0

2.0

850

800

1500

14.5x25.0

9.0

-40 to +70

CR14505

3.0

2.0

1500

1000

3000

14.5x50.5

17.0

-40 to +70

CR17450

3.0

2.0

2400

1000

3000

17.0x45.0

23.0

-40 to +70
