LiMnO2 Battery CR17450 3.0V


    Model No.: CR17450

    Description: Lithium Battery

    Chemical System: Lithium Maganese Dioxide

    Nominal Voltage: 3.0V

    Nominal Capacity: 2400mAh(20mA/1.5V)

    Dimensions: 17.0(D) * 45.0(H) mm

    Max. Constant Current: 1500mA

    Max. Pulse Current: 3000mA

    Cell Weight: 22g

    Operating Temp. Range: -40~+60℃


Battery Features:

■Long shelf life, which is more than 10 years;

■Wide operating temperature range from -60℃ to +85℃;

■Stable operating voltage and loading voltage;

■Available with small, medium and high pulse discharge current. Available

series including bobbin type, spiral type and battery packs.

■With unique performance in wet environment by adopting stainless steel

material, laser and hermetic glass-to-metal welding sealed;

■Long service life of above 5 years; Could be up to more than 10 years in

some special application;

■High energy density, could reach more than 650Wh/Kg, which is about 3-10

times of other series lithium battery;

■Complying with UL, SGS, CE, and UN38.3.


Application:

1. Signal lights and the post indicator transfer

2. Security system

3. Memorizer standby power

4. GPS location tracking device

5. Professional electronic equipment

6. Electronic toll collection systems

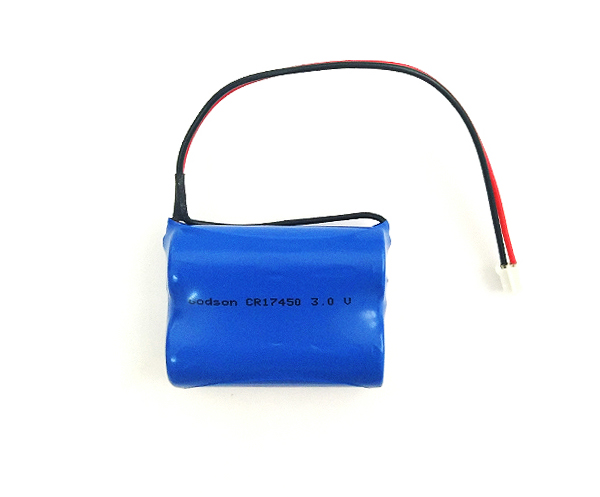

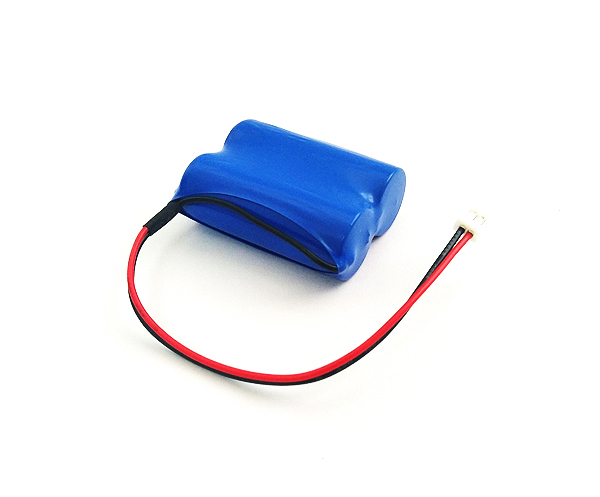

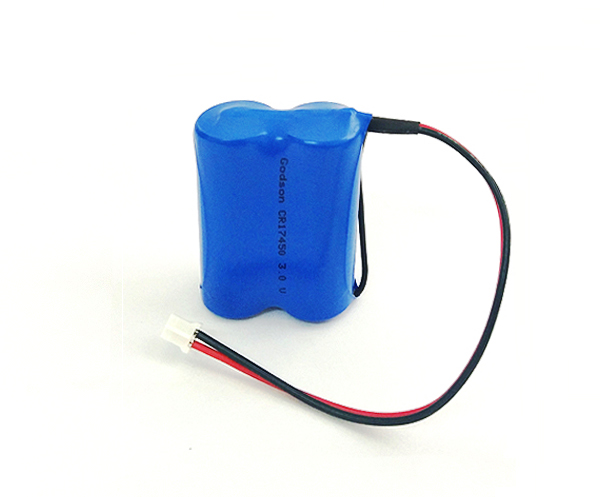

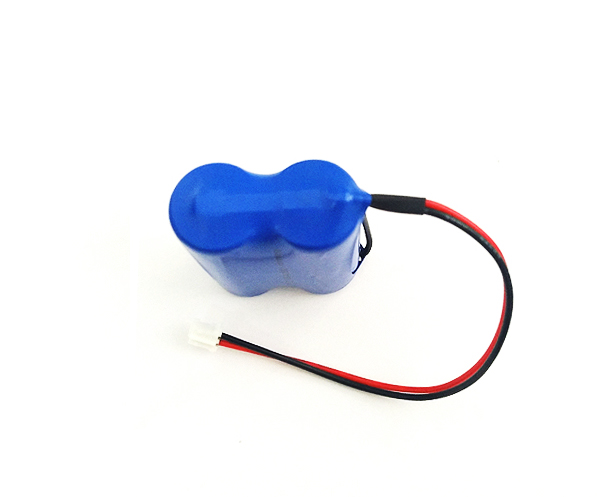

Battery Pictures:
