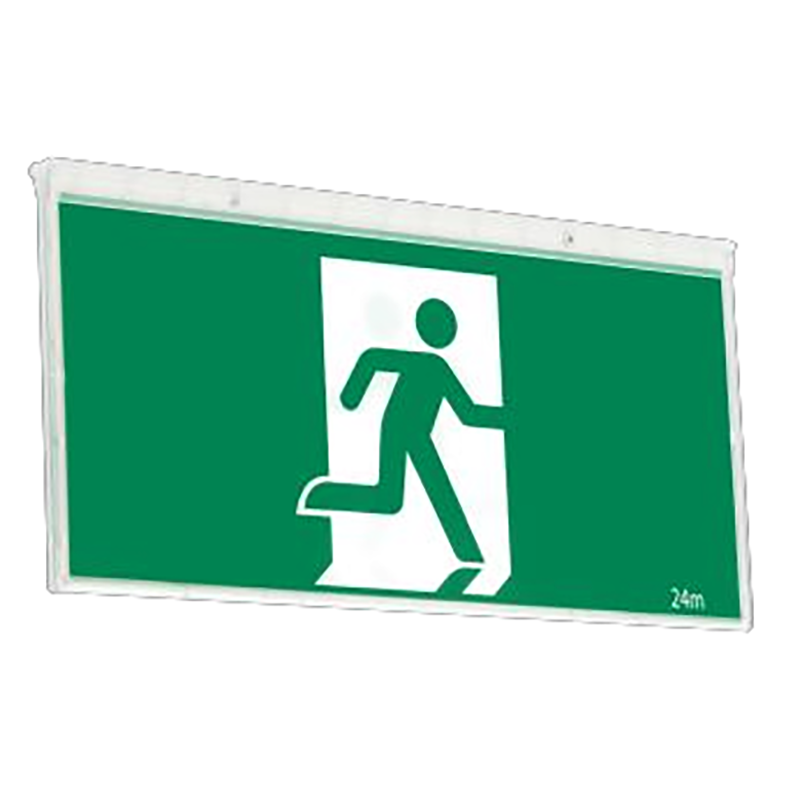

Emergency Exit Lighting 4W EGS4RS

    Technical Specifications

    Mains Supply

    220-240VAC ,50/60Hz

    Power

    4W

    Duration Time

    3 Hours

    Recharge Period

    16 Hours

    Battery Size & Type

    LiFePO4 3.2V 3.0Ah

    LED Power

    2 W (emergency)

    1 W (maintained)

    CCT

    6500k

    CRI

    70

    Luminous Flux

    200 lm (emergency)

    60 lm (maintained)

    View Distance

    24m

    Protection Class

    Class Ⅱ

    Operating Temperature

    0-40 ℃

    Beam Angle

    N/A



Features

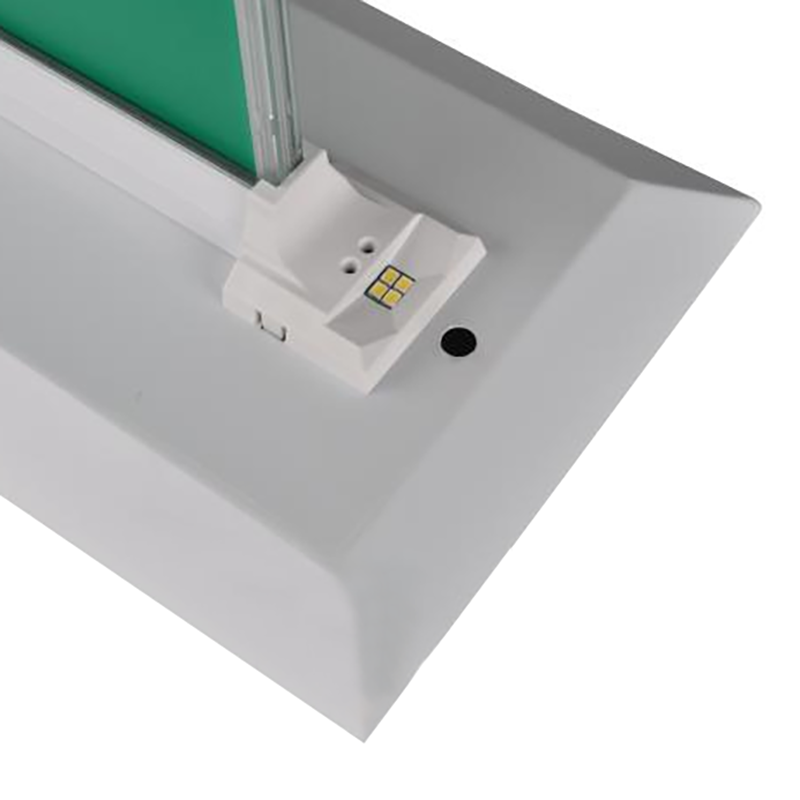

-Exit blade with twin spitfire
-Recessed mounting, IP20
-Surface mounting box is optional
-Built-in LiFePO4 battery, replaceable
-Maintained operation
-Intelligent charge and discharge
-3 hours emergency duration
-Classification: C0/D32,C90/D12.5
-Self test is customizable
-Cut out: 400 x 70mm
-With 1.2meter flex and plug



Materials
-Panel: Metal

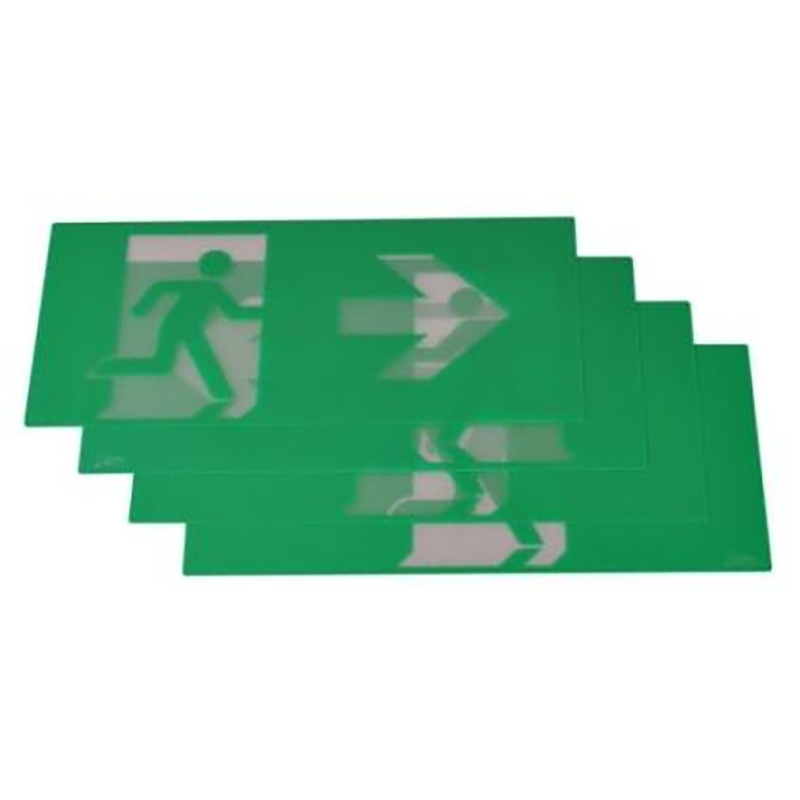

-Legend: PC
-Driver housing: PC, 850℃ glow wire test


Standard Compliance
-AS2293.3
-AS 60598.2.22
-AS/NZS 60598.1
-AS CISPR 15
-IEC62133

-AS61347-2-7


Dimensions



Photometric Datasheet



Emergency light classification:

Emergency lights are mainly divided into: double-head emergency lights, portable emergency lights, fire emergency lights, LED emergency lights, energy-saving emergency lights, explosion-proof emergency lights, underwater emergency lights, rechargeable emergency lights, solar emergency lights, multi-function emergency lights. Among them, fire emergency lights are divided into: fire emergency lighting, fire emergency signs, fire emergency ceiling lights, fire emergency lighting, export emergency lighting.



Emergency light principle:


There are two sets of power supply systems inside the emergency light. One set is the internal battery to supply the light. The other set is the external power supply to supply the light while charging the battery. In addition, there is a power conversion mechanism. When the external power supply is disconnected (blackout) The line will switch to the way the battery is powered. This will keep the emergency light on while the emergency light is off.



Why Godson?

-- Professional And Stay Focused

More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.

-- Great Reliability

Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.

-- Super High Cost-Effective

Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.

-- Strict Control In Production Process

ISO9001/2008 standards are strictly implemented in every process of our production.

-- Quick Response and Fast Delivery

Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.

-- Flexibility in orders
Small orders acceptable as well.
