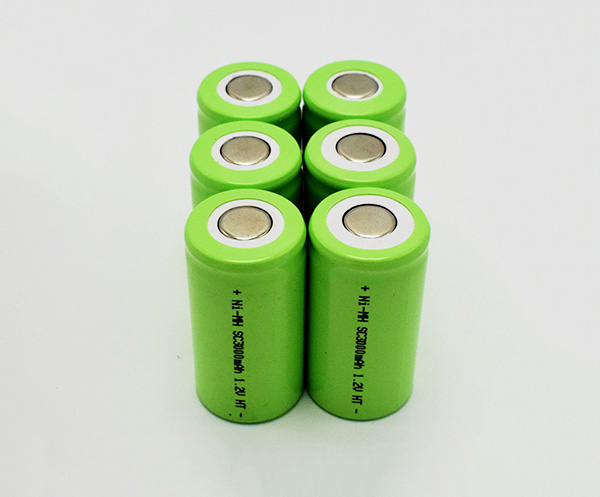

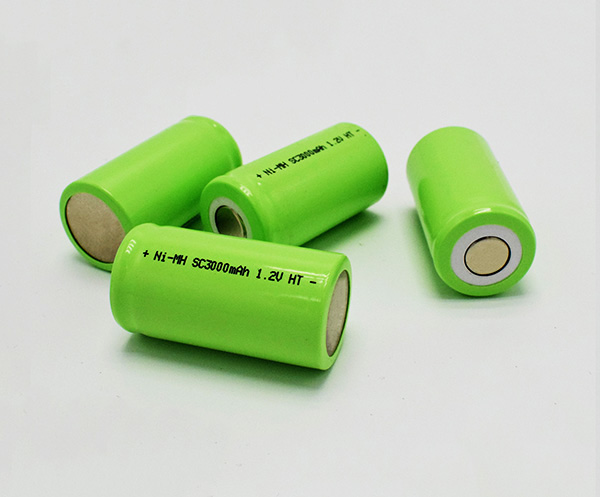

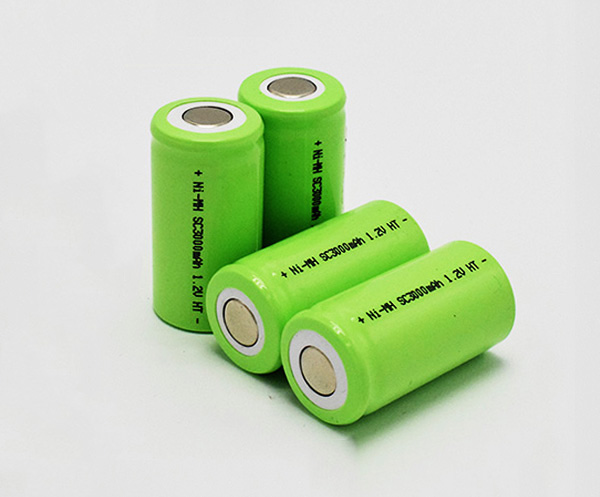

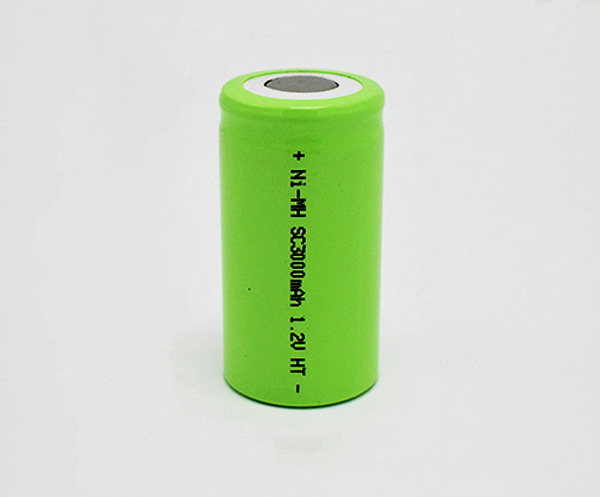

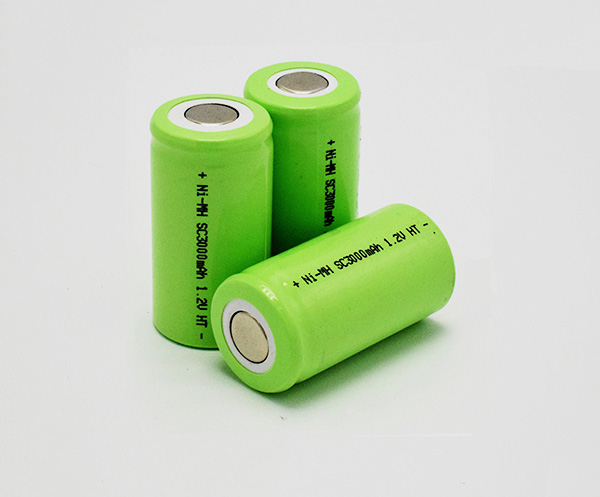

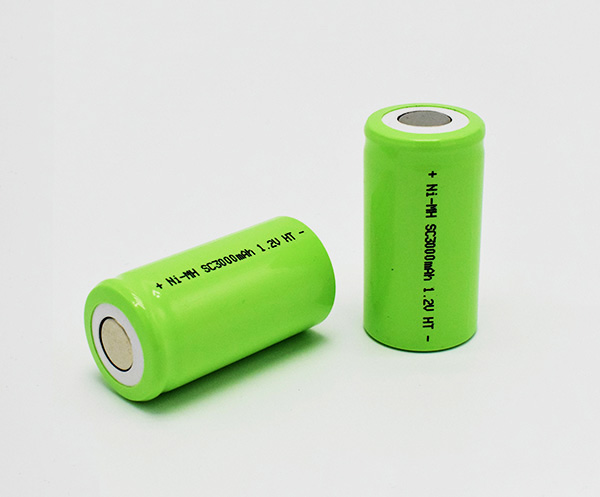

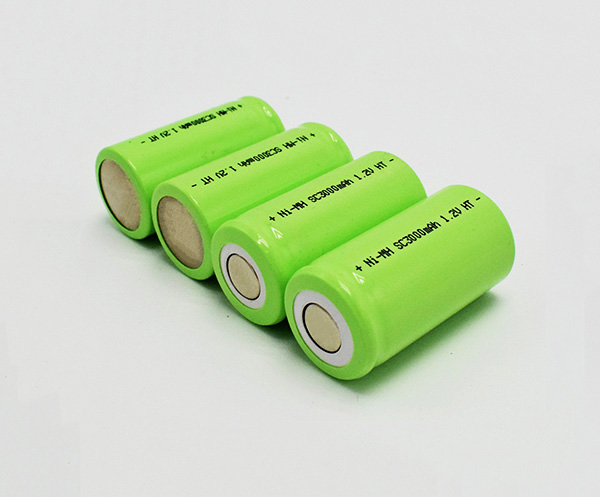

Ni-MH Battery Cell SC3000mAh1.2V HT

    Brand: Godson

    Product Name: Ni MH SC3000mAh 1.2V HT

    Place of Origin: Guangdong, China (Mainland)

    Capacity range: ≥ 3000mAh

    Voltage range: ≥ 1.330V

    Internal resistance range: ≤ 8mΩ

    Diameter: ≤ 22.5mm

    Height: ≤ 42.5mm

    Color of PVC coating: fruit green


Ni-MH Rechargeable Battery Cell SC3000mAh 1.2V HT

Standard Charge Current: 0.1C for 16 hours

Circle Life: ≥500 times

Cell Dimension: 23 +0 -1.0(D), 33.5±0.5(H)

Cell Weight: ≈43.5g

Packaging: Standard export package or customized package



Application:

1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2. Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Personal care: electric shavers, massagers, electric tooth brush



Product performance:

1. Long service life (under normal conditions, the battery cycles more than 500 times.)

2. High rate charging and discharging performance: under the charging conditions specified by the company, the battery can be sufficient in one hour and can discharge with more than 10C current.

3. Wide temperature range: in high and low temperature environment, the battery performance is stable, and the working temperature range is - 10-70 ℃。

4. Good storage performance: at room temperature, the capacity of the battery remains above 70% after one month storage.

5. Improper use of safety devices: add chemical protection to prevent polarity reversal and over discharge; add safety relief valve to reduce internal pressure in case of improper use。

6. High stability: the company adopts the best materials, advanced production technology and technology to make the battery performance stable and reliable.



Performance Curves for Ni-MH Cell:

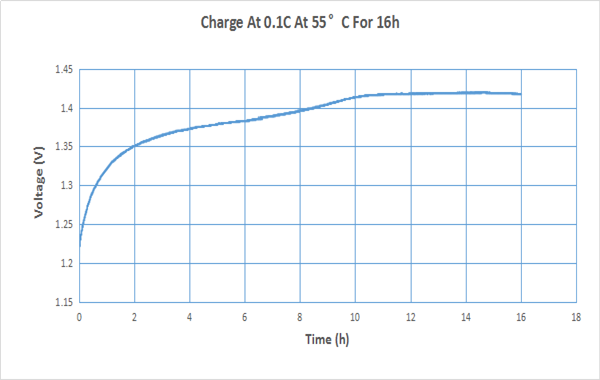

1. Ni-MH Cell Charge Curve At 0.1C For 16h At 55 Degree

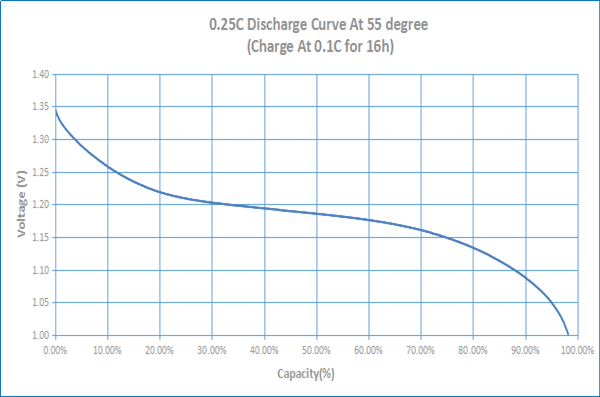

2. Ni-MH Cell Discharge Curve At 0.25C At 55 Degree

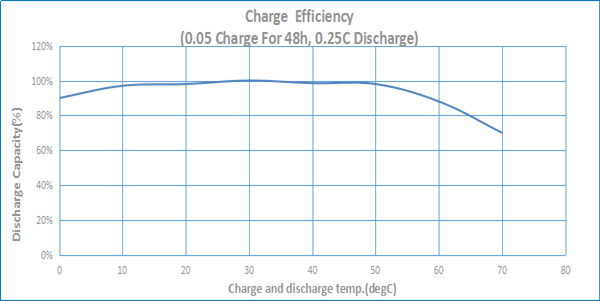

3. Ni-MH Cell Charge Efficiency At Different Temperature

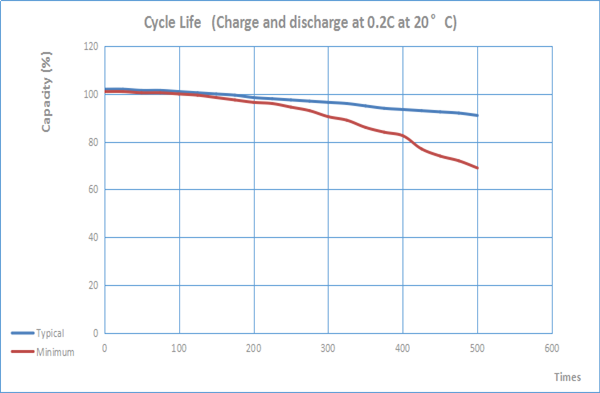

4. Ni-MH Cell Cycle Life Curve
