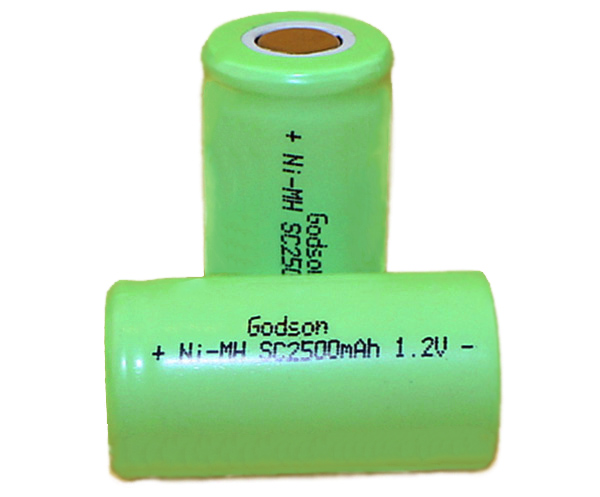

Ni-MH Cell Model

Like Ni-Cd, Ni-MH battery has high charge and discharge efficieny and good safety at high temperature of 55 degree and 70 degree as well, this is why it is widely used in emergency lighting as well. But capacity decreases more and voltage dips more than Ni-Cd battery under the condition of long term floating charge, this is why Ni-MH battery has shorter service life than Ni-Cd battery.

Inquire Now

List Of Ni-MH High Temperature Cells
Type	Model	Diemeter (mm)	Height (mm)	Capacity (mAh)	Voltage(V)	Operating Temperature (°C)
AAA	GS-AAA30HT	10.5 +0 -0.7	43.0 ±0.5	300	1.2	-20 to 70
	GS-AAA30H	10.5 +0 -0.7	43.0 ±0.5	300	1.2	-20 to 55
	GS-AAA40HT	10.5 +0 -0.7	43.0 ±0.5	400	1.2	-20 to 70
	GS-AAA40H	10.5 +0 -0.7	43.0 ±0.5	400	1.2	-20 to 55
	GS-AAA50HT	10.5 +0 -0.7	43.0 ±0.5	500	1.2	-20 to 70
	GS-AAA50H	10.5 +0 -0.7	43.0 ±0.5	500	1.2	-20 to 55
	GS-AAA60HT	10.5 +0 -0.7	43.0 ±0.5	600	1.2	-20 to 70
	GS-AAA60	10.5 +0 -0.7	43.0 ±0.5	600	1.2	-20 to 55
	GS-AAA70	10.5 +0 -0.7	43.0 ±0.5	700	1.2	-20 to 55
	GS-AAA80	10.5 +0 -0.7	43.0 ±0.5	800	1.2	-20 to 55
AA	GS-AA60HT	14.5 +0 -0.7	50.0±0.5	600	1.2	-20 to 70
	GS-AA60H	14.5 +0 -0.7	50.0±0.5	600	1.2	-20 to 55
	GS-AA70HT	14.5 +0 -0.7	50.0±0.5	700	1.2	-20 to 70
	GS-AA70H	14.5 +0 -0.7	50.0±0.5	700	1.2	-20 to 55
	GS-AA80HT	14.5 +0 -0.7	50.0±0.5	800	1.2	-20 to 70
	GS-AA80H	14.5 +0 -0.7	50.0±0.5	800	1.2	-20 to 55
	GS-AA85HT	14.5 +0 -0.7	50.0±0.5	850	1.2	-20 to 70
	GS-AA85H	14.5 +0 -0.7	50.0±0.5	850	1.2	-20 to 55
	GS-AA90HT	14.5 +0 -0.7	50.0±0.5	900	1.2	-20 to 70
	GS-AA90H	14.5 +0 -0.7	50.0±0.5	900	1.2	-20 to 55
	GS-AA100HT	14.5 +0 -0.7	50.0±0.5	1000	1.2	-20 to 70
	GS-AA100H	14.5 +0 -0.7	50.0±0.5	1000	1.2	-20 to 55
	GS-AA110HT	14.5 +0 -0.7	50.0±0.5	1100	1.2	-20 to 70
	GS-AA110H	14.5 +0 -0.7	50.0±0.5	1100	1.2	-20 to 55
	GS-AA120HT	14.5 +0 -0.7	50.0±0.5	1200	1.2	-20 to 70
	GS-AA120H	14.5 +0 -0.7	50.0±0.5	1200	1.2	-20 to 55
	GS-AA130HT	14.5 +0 -0.7	50.0±0.5	1300	1.2	-20 to 70
	GS-AA130H	14.5 +0 -0.7	50.0±0.5	1300	1.2	-20 to 55
	GS-AA140HT	14.5 +0 -0.7	50.0±0.5	1400	1.2	-20 to 70
	GS-AA140H	14.5 +0 -0.7	50.0±0.5	1400	1.2	-20 to 55
	GS-AA150HT	14.5 +0 -0.7	50.0±0.5	1500	1.2	-20 to 70
	GS-AA150H	14.5 +0 -0.7	50.0±0.5	1500	1.2	-20 to 55
	GS-AA160HT	14.5 +0 -0.7	50.0±0.5	1600	1.2	-20 to 70
	GS-AA160H	14.5 +0 -0.7	50.0±0.5	1600	1.2	-20 to 55
	GS-AA170H	14.5 +0 -0.7	50.0±0.5	1700	1.2	-20 to 55
	GS-AA180H	14.5 +0 -0.7	50.0±0.5	1800	1.2	-20 to 55
	GS-AA190H	14.5 +0 -0.7	50.0±0.5	1900	1.2	-20 to 55
	GS-AA200H	14.5 +0 -0.7	50.0±0.5	2000	1.2	-20 to 55
	GS-AA210H	14.5 +0 -0.7	50.0±0.5	2100	1.2	-20 to 55
	GS-AA220H	14.5 +0 -0.7	50.0±0.5	2200	1.2	-20 to 55
A	GS-A180HT	17.0 +0 -0.7	49.5±0.5	1800	1.2	-20 to 70
	GS-A180H	17.0 +0 -0.7	49.5±0.5	1800	1.2	-20 to 55
	GS-A190HT	17.0 +0 -0.7	49.5±0.5	1900	1.2	-20 to 70
	GS-A190H	17.0 +0 -0.7	49.5±0.5	1900	1.2	-20 to 55
	GS-A200HT	17.0 +0 -0.7	49.5±0.5	2000	1.2	-20 to 70
	GS-A200H	17.0 +0 -0.7	49.5±0.5	2000	1.2	-20 to 55
	GS-A210HT	17.0 +0 -0.7	49.5±0.5	2100	1.2	-20 to 70
	GS-A210H	17.0 +0 -0.7	49.5±0.5	2100	1.2	-20 to 55
	GS-A220H	17.0 +0 -0.7	49.5±0.5	2200	1.2	-20 to 55
	GS-A230H	17.0 +0 -0.7	49.5±0.5	2300	1.2	-20 to 55
	GS-A240H	17.0 +0 -0.7	49.5±0.5	2400	1.2	-20 to 55
	GS-A250H	17.0 +0 -0.7	49.5±0.5	2200	1.2	-20 to 55
	GS-4/3A250HT	17.0 +0 -0.7	66.5±0.5	2500	1.2	-20 to 70
	GS-4/3A260HT	17.0 +0 -0.7	66.5±0.5	2600	1.2	-20 to 70
	GS-4/3A270HT	17.0 +0 -0.7	66.5±0.5	2700	1.2	-20 to 70
	GS-4/3A280HT	17.0 +0 -0.7	66.5±0.5	2800	1.2	-20 to 70
	GS-4/3A290HT	17.0 +0 -0.7	66.5±0.5	2900	1.2	-20 to 70
	GS-4/3A300HT	17.0 +0 -0.7	66.5±0.5	3000	1.2	-20 to 70
	GS-4/3A280H	17.0 +0 -0.7	66.5±0.5	2800	1.2	-20 to 55
	GS-4/3A300H	17.0 +0 -0.7	66.5±0.5	3000	1.2	-20 to 55
	GS-4/3A330H	17.0 +0 -0.7	66.5±0.5	3300	1.2	-20 to 55
	GS-4/3A340H	17.0 +0 -0.7	66.5±0.5	3300	1.2	-20 to 55
	GS-4/3A350H	17.0 +0 -0.7	66.5±0.5	3300	1.2	-20 to 55
	GS-4/3A370H	17.0 +0 -0.7	66.5±0.5	3300	1.2	-20 to 55
	GS-4/3A380H	17.0 +0 -0.7	66.5±0.5	3300	1.2	-20 to 55
SC	GS-SC130HT	23.0 +0 -1.0	42.5±0.5	1300	1.2	-20 to 70
	GS-SC130H	23.0 +0 -1.0	42.5±0.5	1300	1.2	-20 to 55
	GS-SC140HT	23.0 +0 -1.0	42.5±0.5	1400	1.2	-20 to 70
	GS-SC140H	23.0 +0 -1.0	42.5±0.5	1400	1.2	-20 to 55
	GS-SC150HT	23.0 +0 -1.0	42.5±0.5	1500	1.2	-20 to 70
	GS-SC150H	23.0 +0 -1.0	42.5±0.5	1500	1.2	-20 to 55
	GS-SC160HT	23.0 +0 -1.0	42.5±0.5	1600	1.2	-20 to 70
	GS-SC160H	23.0 +0 -1.0	42.5±0.5	1600	1.2	-20 to 55
	GS-SC170HT	23.0 +0 -1.0	42.5±0.6	1700	1.2	-20 to 70
	GS-SC170H	23.0 +0 -1.0	42.5±0.6	1700	1.2	-20 to 70
	GS-SC180HT	23.0 +0 -1.0	42.5±0.5	1800	1.2	-20 to 70
	GS-SC180H	23.0 +0 -1.0	42.5±0.5	1800	1.2	-20 to 55
	GS-SC190HT	23.0 +0 -1.0	42.5±0.5	1900	1.2	-20 to 70
	GS-SC190H	23.0 +0 -1.0	42.5±0.5	1900	1.2	-20 to 55
	GS-SC200HT	23.0 +0 -1.0	42.5±0.5	2000	1.2	-20 to 70
	GS-SC200H	23.0 +0 -1.0	42.5±0.5	2000	1.2	-20 to 55
	GS-SC210HT	23.0 +0 -1.0	42.5±0.5	2100	1.2	-20 to 70
	GS-SC210H	23.0 +0 -1.0	42.5±0.5	2100	1.2	-20 to 55
	GS-SC220HT	23.0 +0 -1.0	42.5±0.5	2200	1.2	-20 to 70
	GS-SC220H	23.0 +0 -1.0	42.5±0.5	2200	1.2	-20 to 55
	GS-SC230HT	23.0 +0 -1.0	42.5±0.5	2300	1.2	-20 to 70
	GS-SC230HT	23.0 +0 -1.0	42.5±0.5	2300	1.2	-20 to 55
	GS-SC240HT	23.0 +0 -1.0	42.5±0.5	2400	1.2	-20 to 70
	GS-SC240HT	23.0 +0 -1.0	42.5±0.5	2400	1.2	-20 to 55
	GS-SC250HT	23.0 +0 -1.0	42.5±0.5	2500	1.2	-20 to 70
	GS-SC250H	23.0 +0 -1.0	42.5±0.5	2500	1.2	-20 to 55
	GS-SC280H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
	GS-SC300H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
	GS-SC330H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
	GS-SC350H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
	GS-SC400H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
	GS-SC400H	23.0 +0 -1.0	42.5±0.5	2800	1.2	-20 to 55
C	GS-C400HT	25.8 +0 -1.0	48.5±0.5	4000	1.2	-20 to 70
	GS-C400H	25.8 +0 -1.0	48.5±0.5	4000	1.2	-20 to 55
	GS-C450HT	25.8 +0 -1.0	48.5±0.5	4500	1.2	-20 to 70
	GS-C450H	25.8 +0 -1.0	48.5±0.5	4500	1.2	-20 to 55
	GS-C500H	25.8 +0 -1.0	48.5±0.5	5000	1.2	-20 to 55
D	GS-D800HT	33.0 +0 -1.0	60.0 +0 -1.5	8000	1.2	-20 to 70
	GS-D800H	33.0 +0 -1.0	60.0 +0 -1.5	8000	1.2	-20 to 55
	GS-D900H	33.0 +0 -1.0	60.0 +0 -1.5	9000	1.2	-20 to 55
	GS-D1000H	33.0 +0 -1.0	60.0 +0 -1.5	10000	1.2	-20 to 55
