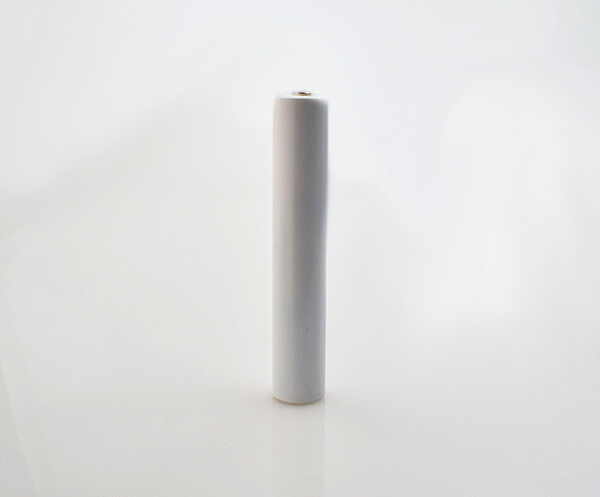

Ni-Cd Battery Pack 3SC 1500mAh 3.6V

    Model Number: 3GS-SC150T-A/B

    Product Name: Ni-Cd Rechargeable Battery Pack SC1500mAh 3.6V

    Place of Origin: Guangdong, China (Mainland)

    Brand Name: Godson or OEM

    Type: NI-CD

    Size: SC

    Configuration: Stick/Side by Side

    Nominal Voltage: 3.6V

    Nominal Capacity: 1500mAh


3.6v ni cd battery

A 3.6V nickel-cadmium (Ni-Cd) battery is a rechargeable battery that uses nickel oxide hydroxide and metallic cadmium as electrodes. Ni-Cd batteries have been widely used in various applications, including portable electronic devices, power tools, and emergency lighting, although their popularity has declined in recent years due to the emergence of newer and more efficient battery technologies.

Ni-Cd batteries have a nominal voltage of 1.2V per cell, which means that a 3.6V battery typically consists of three cells connected in series. These batteries have a relatively high energy density, and long cycle life, and can operate in a wide range of temperatures. However, they also have some drawbacks, including a high self-discharge rate, memory effect, and environmental concerns due to the toxic nature of cadmium.

If you are using a 3.6V Ni-Cd battery, it is important to properly maintain and charge it according to the manufacturer's instructions to ensure optimal performance and longevity.

Ni-Cd Rechargeable Battery Pack SC1500mAh 3.6V

Standard Charge Mode: 0.1C for 16 hours

Cycle Life: ≥500 times

Operating Temperature: (-20℃) - (+70℃)

Storage Temperature: (-30℃) - (+60℃)

Cell Dimension: 23 +0 -1.0(D), 42.5±0.5(H)

Cell Weight: ≈45g

Expected Life: 5 years

Packaging: Standard export package or customized package


Application:

1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2.Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Other uses: electric shavers, massagers, electric tooth brush


Ni-Cd Battery Cell Performance:

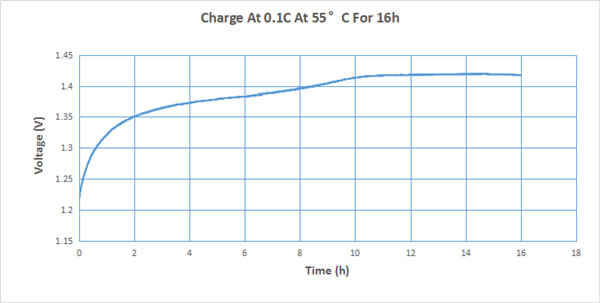

1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree

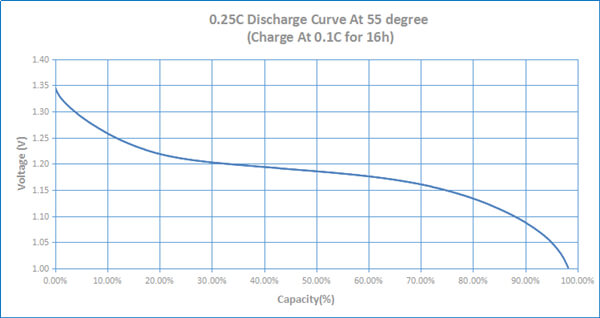

2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree

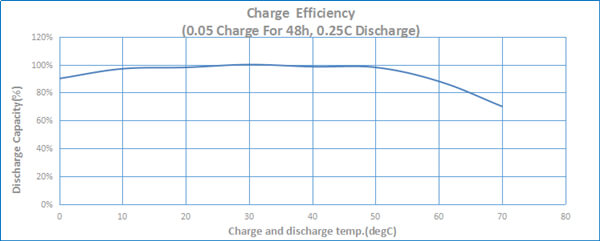

3. Ni-Cd Cell Charge Efficiency At Different Temperature

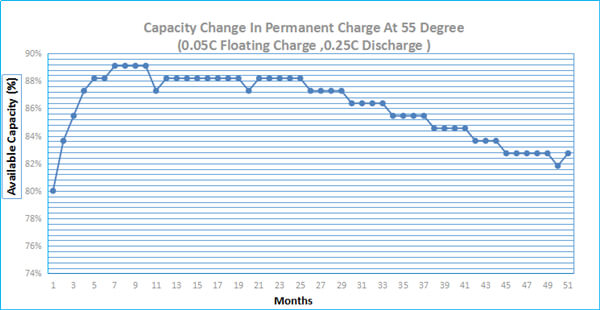

4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)

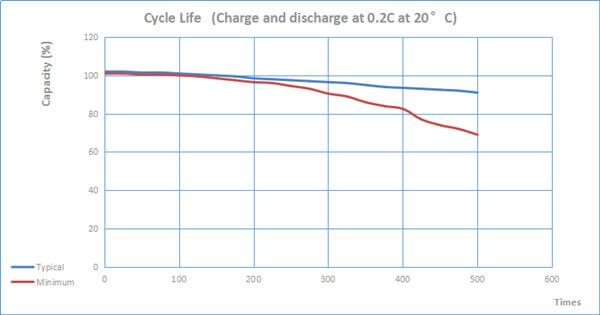

5. Ni-Cd Cell Cycle Life Curve

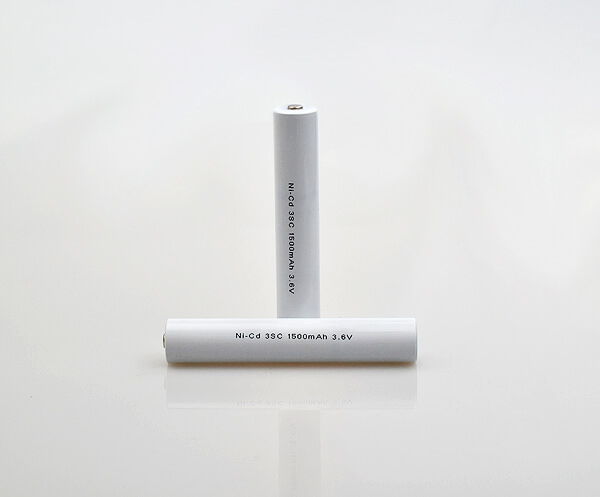

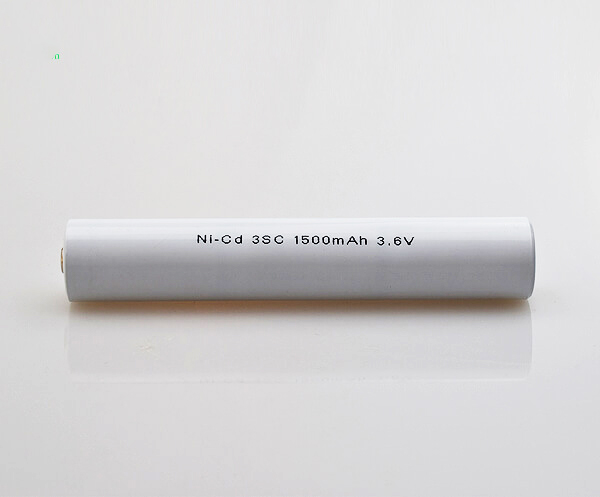

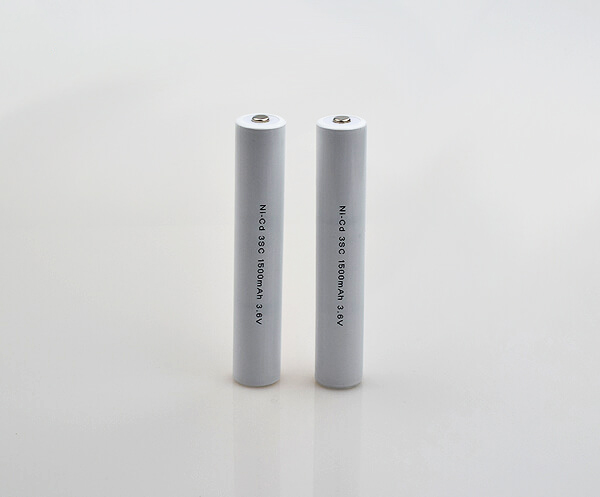

Ni-Cd Battery Pack 3SC 1500mAh 3.6V

Ni-Cd Battery Properties


1.Constant high-temperature operation

2.Temperature depending on the used emergency lighting unit (refer to respective emergency control gear data sheet)

3.Good charging properties at high temperature

4.High energy maintenance of the charged battery

5.Certified quality manufacturer

6.Casing material made of polycarbonate



Why Godson?

-- Professional And Stay Focused
More than twenty years’ experience in battery industry; Keep focusing on emergency lighting battery, e-bike battery and power tool battery.

-- Great Reliability
Expected life of our Ni-Cd battery pack is more than 5 years; Expected life of our LiFePO4 battery pack is more than 10 years; Our batteries comply with standards of ICEL 1010, IEC 60598, IEC 61951, IEC 61960, IEC 62133 and UN38.3.

-- Super High Cost-Effective
Price of our products is much more competitive comparing with our competitors, but with the same or even better performance.

-- Strict Control In Production Process
ISO9001/2008 standards are strictly implemented in every process of our production.

-- Quick Response and Fast Delivery
Every inquiry would be replied within 24 hours, each order would be delivered within 30 days.

-- Flexibility in orders
Small orders acceptable as well.
