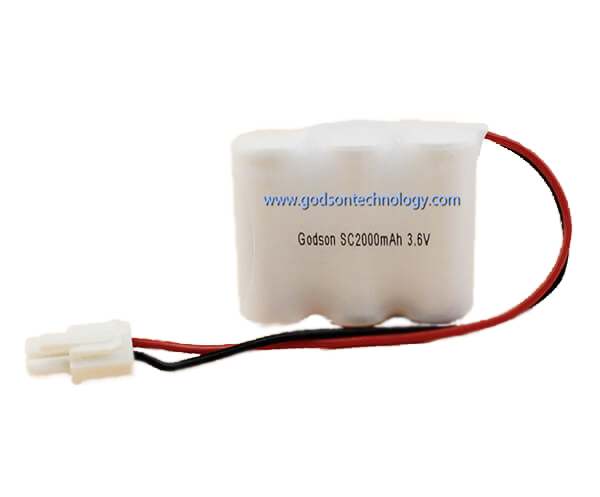

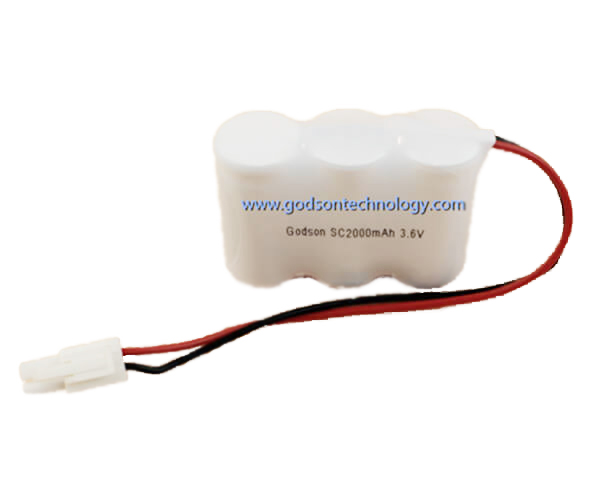

Ni-Cd Battery Pack SC2000mAh 3.6V
  • Ni-Cd Battery Pack SC2000mAh 3.6V
  • Ni-Cd Battery Pack SC2000mAh 3.6V
Ni-Cd Battery Pack SC2000mAh 3.6VNi-Cd Battery Pack SC2000mAh 3.6V

Ni-Cd Battery Pack SC2000mAh 3.6V

    Model Number: 3GS-SC200T-A
    Product Name: Ni-Cd Rechargeable Battery Pack SC2000mAh 3.6V
    Place of Origin: Guangdong, China (Mainland)
    Type: NI-CD
    Size: SC
    Configuration: Side by side
    Nominal Voltage: 3.6V
    Nominal Capacity: 2000mAh

Product Name: Ni-Cd Rechargeable Battery Pack SC2000mAh 3.6V

Standard Charge Mode: 0.1C for 16 hours
Cycle Life: ≥500 times
Operating Temperature: (-20℃) - (+70℃)
Storage Temperature: (-30℃) - (+60℃)
Cell Dimension: 23 +0 -1.0(D), 42.5±0.5(H)
Cell Weight: ≈48g
Expected Life: 4 years
Packaging: Standard export package or customized package


Application:

1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2.Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Other uses: electric shavers, massagers, electric tooth brush


Product performance:

1. High life. The Ni Cd battery can provide more than 500 charge and discharge cycles, and its service life is almost equal to the service life of the equipment using the battery.

2. Excellent discharge performance. In the case of high current discharge, nickel cadmium battery has low internal resistance and high voltage discharge characteristics, so it is widely used.

3. Long storage period. The Ni Cd battery has a long storage life and few restrictions, so it can be charged normally after long-term storage.

4. High rate charging performance. The nickel cadmium battery can be quickly charged according to the application needs, and the full charge time is only 1.2 hours.

5. Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.

6. Reliable safety valve. The safety valve provides maintenance free function. Nickel cadmium battery can be used freely in the process of charge discharge or storage. Due to the special material used in the sealing ring and the effect of sealant, the leakage phenomenon of Ni Cd battery is rare.

7. A wide range of applications. The capacity of nickel cadmium battery ranges from 100mah to 7000mah. There are four types commonly used: standard type, consumer type, high temperature type and high current discharge type, which can be applied to any wireless device.

8. High quality and high reliability. Nickel cadmium battery is manufactured under very strict quality management and has excellent quality dependence.


Ni-Cd Battery Cell Performance:

1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree


2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree


3. Ni-Cd Cell Charge Efficiency At Different Temperature


4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)

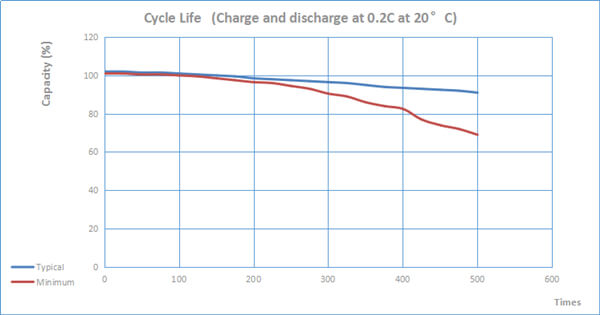

5. Ni-Cd Cell Cycle Life Curve


What is the Principle of Ni-Cd Battery?

As a Ni-Cd Battery Pack Supplier, share with you. The active material on the positive plate of a Ni-Cd Battery is composed of nickel oxide powder and graphite powder. Graphite does not participate in chemical reactions and its main function is to enhance electrical conductivity. The active material on the negative plate is composed of cadmium oxide powder and iron oxide powder. The function of the iron oxide powder is to make the cadmium oxide powder have higher diffusivity, prevent agglomeration, and increase the capacity of the polar plate. The active materials are wrapped in perforated steel strips, and after being pressed and formed, they become the positive and negative plates of the battery. The polar plates are separated by alkali-resistant hard rubber insulating rods or perforated PVC corrugated plates. The electrolyte is usually potassium hydroxide solution. Compared with other batteries, the self-discharge rate of NiCd batteries (that is, the rate of loss of charge when the battery is not in use is moderate). During the use of NiCd batteries, if they are not completely discharged, they will be recharged.




FAQ20200824030847862 (1).jpg


Q1:Are these new cells?
yes 100% ,factory direct.

Q2: Are you a trading company or manufacturer?
A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.

Q3: Can you do OEM?

A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.

Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.

Q5:Where can I get the price?
A: Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get

the product specifications such as voltage capacity application etc.
