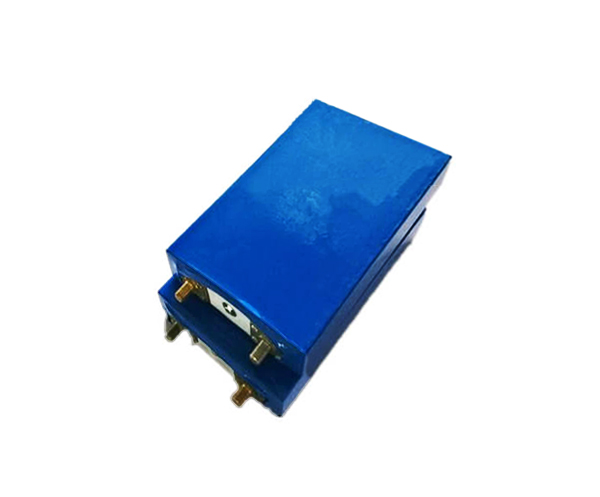

LiFePO4 Rechargeable Prismatic Battery 3.2V 60Ah

    Model Number: GS-IFR3.2V-60Ah

    Product Name: LiFePO4 Rechargeable Prismatic Battery 3.2V 60Ah

    Place of Origin: Guangdong, China (Mainland)

    Brand Name: Godson or OEM

    Type: LiFePO4

    Nominal Voltage: 3.2V

    Nominal Capacity: 60Ah



Product Name: LiFePO4 Rechargeable Prismatic Battery 3.2V 60Ah

Solar Lighting Battery LFP

Rated voltage: 3.2 V

Charge current: 40A (Up to 0.5C)

Resistance: Around 2mΩ

Maximum charge voltage: (3.6+-0.05V)

Continuous Discharge Current: 210A (3C)

Maximum Discharge Current: 350A(5C)

Minimal Discharge Voltage: 2.2V

Weight:1.7KG

Size:210mm(height) x130mm(width) x 35mm(thickness)


Product performance:

1. Long cycle life. The cycle life of LiFePO4 battery is more than 2000 times. Under the same conditions, LiFePO4 battery can be used for 7 to 8 years.

2. Safe use. Lithium iron phosphate has been strictly tested for safety and will not explode even in the worst traffic accidents.

3. Fast charging. Lithium iron phosphate battery can be charged and discharged quickly with high current 2C. Under the special charger, the battery can be fully charged within 40 minutes at 1.5C.

4. High temperature resistance. The peak temperature of lithium iron phosphate can reach 350 to 500 ℃, while that of lithium manganate and lithium cobalt oxide is only about 200 ℃.

5. Large capacity. Lithium iron phosphate battery has a larger capacity than ordinary battery (lead acid, etc.), according to the capacity density of battery, the energy density of lead-acid battery is about 40wh / kg, and the energy density of mainstream lithium iron phosphate battery in the market is above 90Wh / kg.

6. No memory effect. No matter what state the battery is in, it can be used as soon as it is charged. There is no need to discharge it before charging.

7. Environmental protection, non-toxic and pollution-free. Lithium iron phosphate battery is generally considered to be free of any heavy metals and rare metals (Ni MH batteries need rare metals), non-toxic (SGS certification), pollution-free, in line with European ROHS regulations, green environmental protection batteries.




Application:

EV, Power tools, E-bike, Electric motorcycle, Golf car cart,  Tourist coaches,  LED flashlight, Portable power system, etc.


Performance Curves of LiFePO4 Cell:

1. LiFePO4 Cell Charge Curve (Charge at 0.1C)


2. LiFePO4 Cell Discharge Curve (Discharge at 0.2C )


3. LiFePO4 Cell Charge Efficiency At Different Temperature


4. LiFePO4 Cell Cycle Life Curve


5. LiFePO4  Cell Capacity Change At Smart Floating Charge At 55 degree
