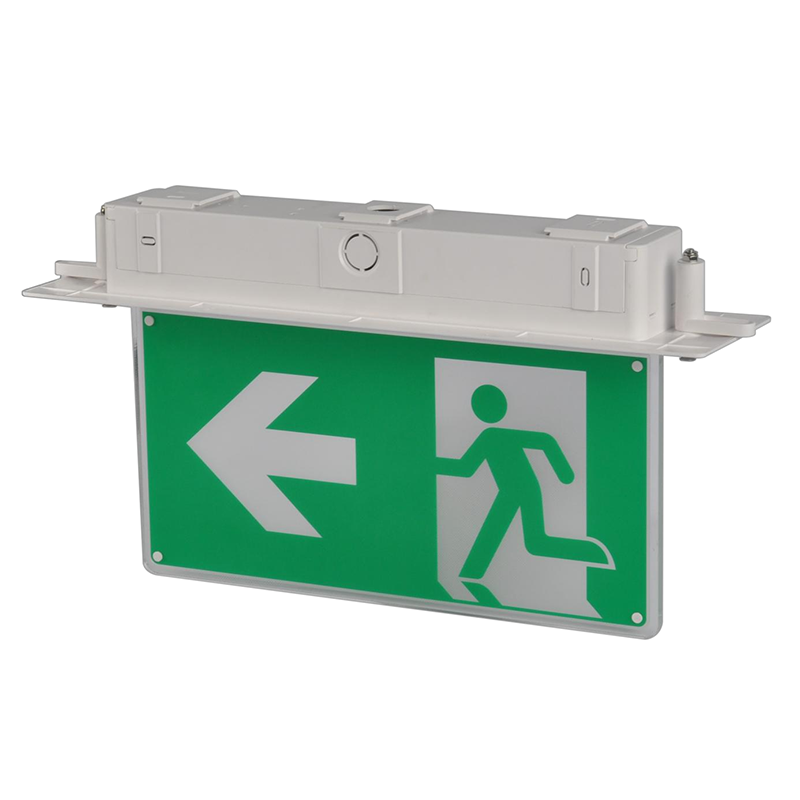

Emergency Exit Sign Lighting GS-EGS4MRB

    Technical Specifications

    Mains Supply

    220-240VAC ,50/60Hz

    Power

    2W

    Duration Time

    3 Hours

    Recharge Period

    16 Hours

    Battery Size & Type

    LiFePO4 3.2V1.5Ah

    LED Power

    0.7 W (emergency)

    1.0 W (maintained)

    CCT

    6500k

    CRI

    70

    Luminous Flux

    40 lm (emergency)

    30 lm(maintained)

    View Distance

    24m

    Protection Class

    Class Ⅱ

    Operating Temperature

    0-40 ℃

    Beam Angle

    N/A


Features

-Recessed installation, IP20
- 24m viewing distance
-Built-in LiFePO4 battery, replaceable
-Maintained operation
-Intelligent charge and discharge
-3 hours emergency duration
-Cut out: 380 x 70mm



Materials
-Driver housing: PC, 850℃ glow wire test
-Panel: PC+ABS, 850℃ glow wire test


Standard Compliance
AS2293.3
-AS 60598.2.22
-AS/NZS 60598.1
-AS CISPR 15
-IEC62133

-AS61347-2-7

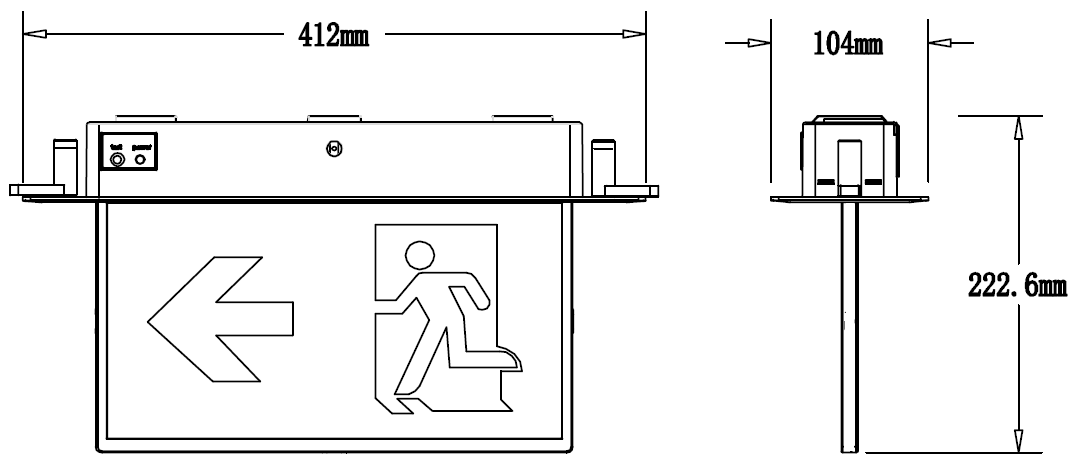

Dimensions

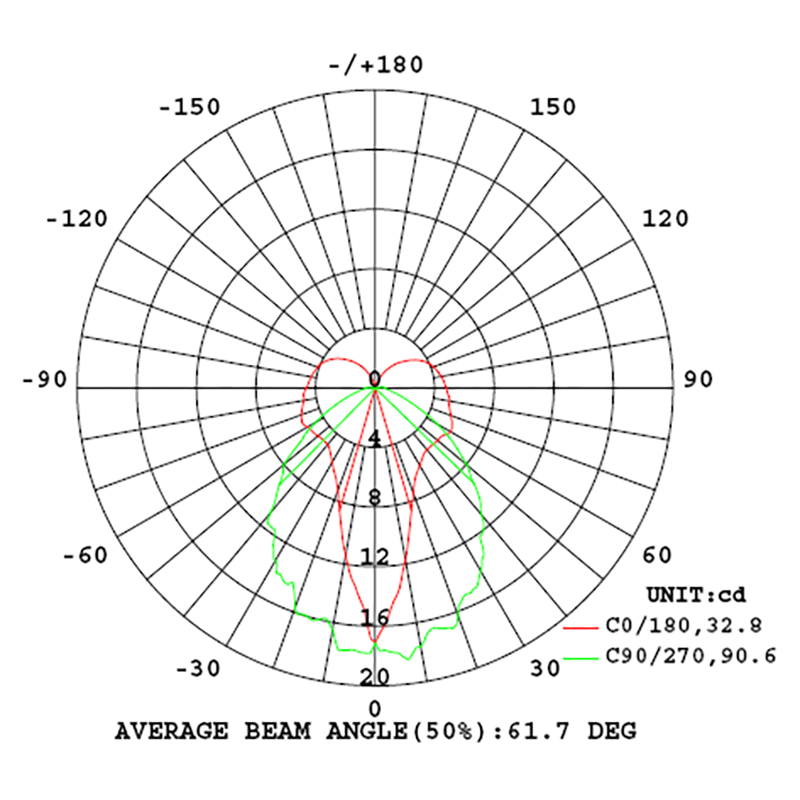

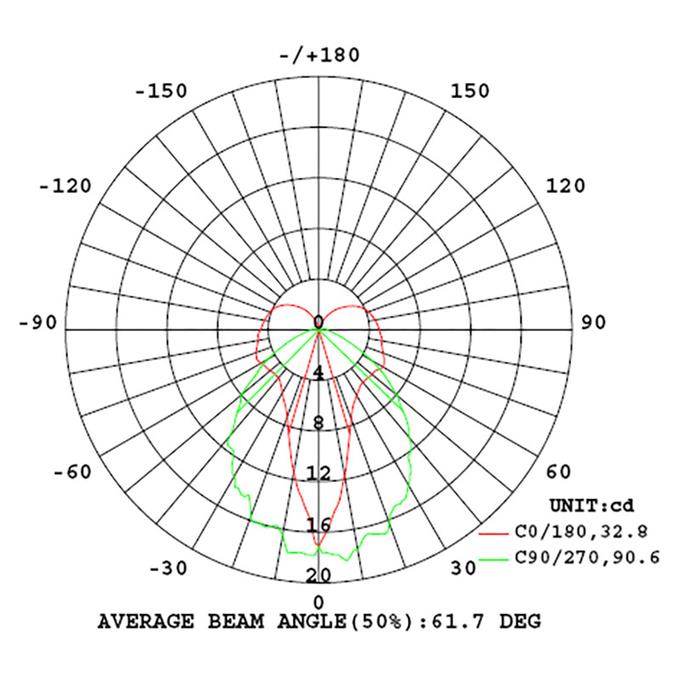

Photometric Datasheet


The Working Principle and Classification of Emergency Lights

1. Emergency light classification:
Emergency lights are mainly divided into: double-head emergency lights, portable emergency lights, fire emergency lights, LED emergency lights, energy-saving emergency lights, explosion-proof emergency lights, underwater emergency lights, rechargeable emergency lights, solar emergency lights, multi-function emergency lights. Among them, fire emergency lights are divided into: fire emergency lighting, fire emergency signs, fire emergency ceiling lights, fire emergency lighting, export emergency lighting.


2. Emergency light principle:
There are two sets of power supply systems inside the emergency light. One set is the internal battery to supply the light. The other set is the external power supply to supply the light while charging the battery. In addition, there is a power conversion mechanism. When the external power supply is disconnected (blackout) The line will switch to the way the battery is powered. This will keep the emergency light on while the emergency light is off.


From: www.godsontechnology.com
