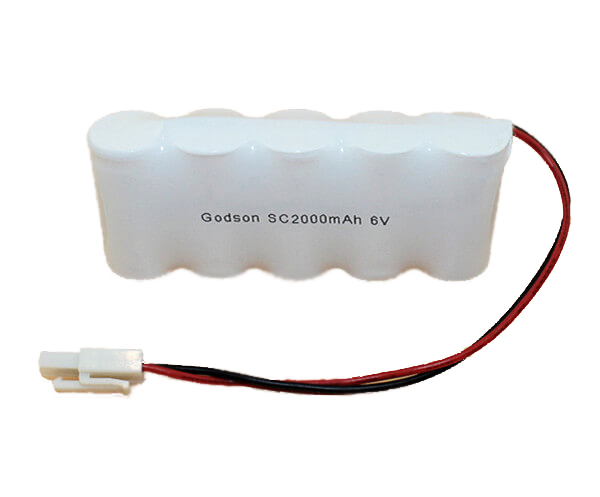

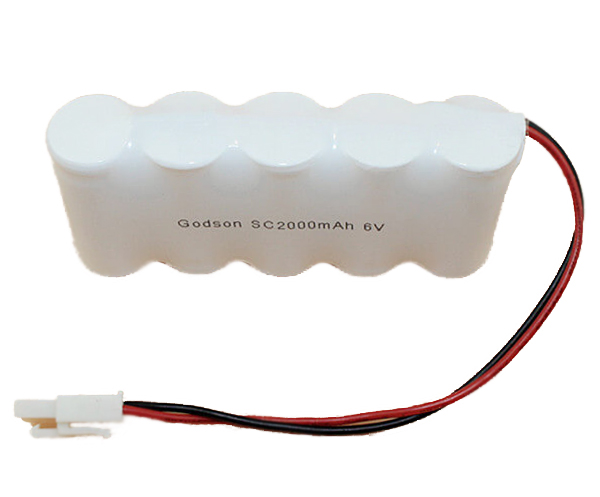

Ni-Cd Battery Pack SC2000mAh 6.0V SBS

    Model Number: 5GS-SC200T-A

    Product Name: Ni-Cd Rechargeable Battery Pack SC2000mAh 6.0V

    Place of Origin: Guangdong, China (Mainland)

    Brand Name: Godson or OEM

    Type: NI-CD

    Size: SC

    Configuration: Side by side

    Nominal Voltage: 6.0V

    Nominal Capacity: 2000mAh

Product Name: Ni-Cd Rechargeable Battery Pack SC2000mAh 6.0V

Standard Charge Mode: 0.1C for 16 hours

Cycle Life: ≥500 times

Operating Temperature: (-20℃) - (+70℃)

Storage Temperature: (-30℃) - (+60℃)

Cell Dimension: 23 +0 -1.0(D), 42.5±0.5(H)

Cell Weight: ≈48g

Expected Life: 5years

Packaging: Standard export package or customized package


1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2.Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Other uses: electric shavers, massagers, electric tooth brush

Product performance:

1. High life. The Ni Cd battery can provide more than 500 charge and discharge cycles, and its service life is almost equal to the service life of the equipment using the battery.

2. Excellent discharge performance. In the case of high current discharge, nickel cadmium battery has low internal resistance and high voltage discharge characteristics, so it is widely used.

3. Long storage period. The Ni Cd battery has a long storage life and few restrictions, so it can be charged normally after long-term storage.

4. High rate charging performance. The nickel cadmium battery can be quickly charged according to the application needs, and the full charge time is only 1.2 hours.

5. Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.

6. Reliable safety valve. The safety valve provides maintenance free function. Nickel cadmium battery can be used freely in the process of charge discharge or storage. Due to the special material used in the sealing ring and the effect of sealant, the leakage phenomenon of Ni Cd battery is rare.

7. A wide range of applications. The capacity of nickel cadmium battery ranges from 100mah to 7000mah. There are four types commonly used: standard type, consumer type, high temperature type and high current discharge type, which can be applied to any wireless device.

8. High quality and high reliability. Nickel cadmium battery is manufactured under very strict quality management and has excellent quality dependence.

Ni-Cd Battery Cell Performance:

1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree

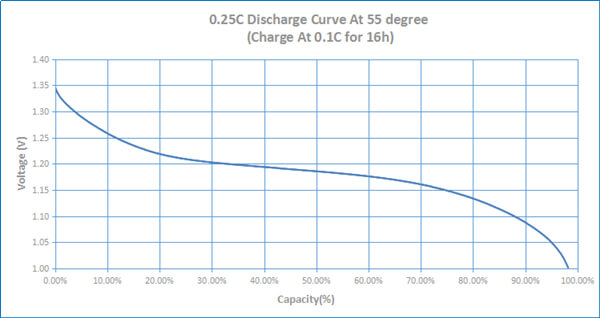

2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree

3. Ni-Cd Cell Charge Efficiency At Different Temperature

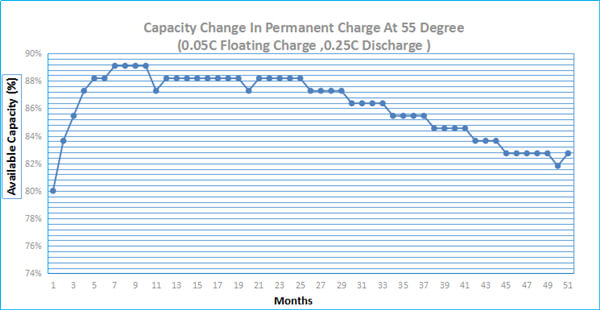

4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)

5. Ni-Cd Cell Cycle Life Curve

Something to know about Ni-Cd battery

1.What is a Ni-Cd battery?

A nickel-cadmium battery (Ni-Cd or Ni-Cad) is a rechargeable battery used in portable computers, rigs, video cameras, and other small battery-powered devices that require uniform discharge. Ni-Cds use electrodes made from nickel oxide hydroxide, cadmium metal, and potassium hydroxide alkaline electrolyte.

2.Ni-Cd Battery Pack

Two or more Ni-Cd battery cells combined to form a battery pack.Because they are typically similar in size to primary cells (non-rechargeable batteries), Ni-Cds may have lower terminal voltages and smaller ampere-hour capacities. However, unlike primary cells, Ni-Cds provide a nearly constant terminal voltage during discharge, which can result in an almost undetectably low charge. During discharge, Ni-Cds convert chemical energy into electrical energy. During charging, Ni-Cds convert electrical energy back into chemical energy.


Q1:Are these new cells?
yes 100% ,factory direct.

Q2: Are you a trading company or manufacturer?
A: We are globally trusted supplier and manufacturer of emergency lighting battery, emergency lighting products, whose batteries range covers Ni-Cd, Ni-MH, LiFePO4,, Lion-polymer and other relevant lithium batteries.

Q3: Can you do OEM?

A: Yes, OEM is acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.

Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.
