Emergency Light EGSMD40 EGSMD50 EGSMD63

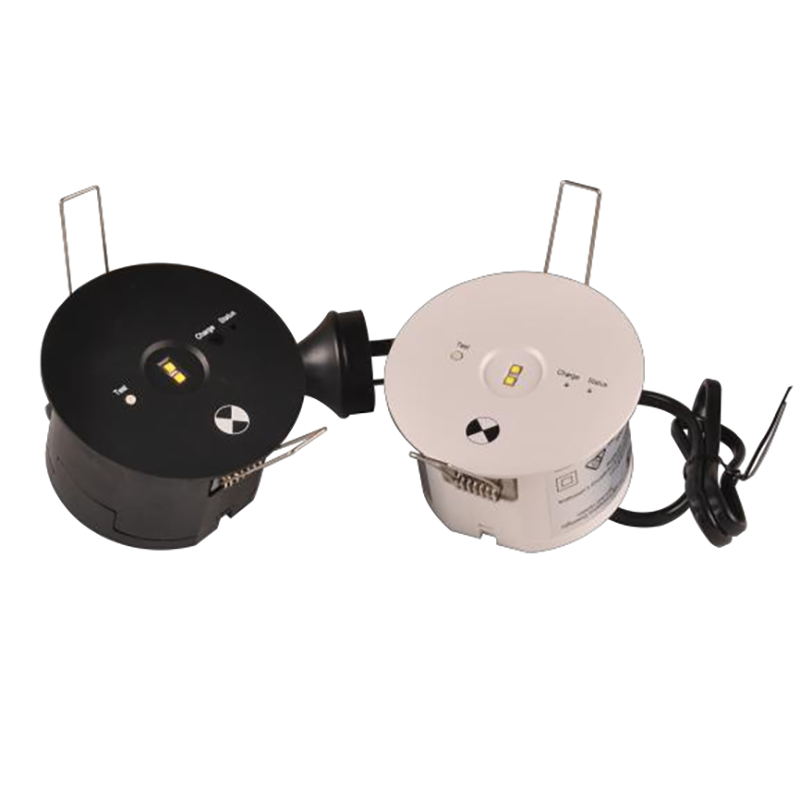

    Non Maintained Emergency LED Downlight White 2.5W 130mm EGSMD40/EGSMD50/EGSMD63

    Technical Specifications


    Mains Supply

    220-240VAC ,50/60Hz



    Duration Time

    3 Hours

    Recharge Period

    16 Hours

    Battery Size & Type

    LiFePO4 3.2V1.5Ah

    LED Power

    1.6/2.0/2.5W (emergency)





    Luminous Flux

    230/290/360 lm (emergency)

    Beam Angle


    Protection Class

    Class Ⅱ

    Operating Temperature

    0-40 ℃

    Cut Out

    Φ76-130 mm


-Recessed, IP20, Non-maintained

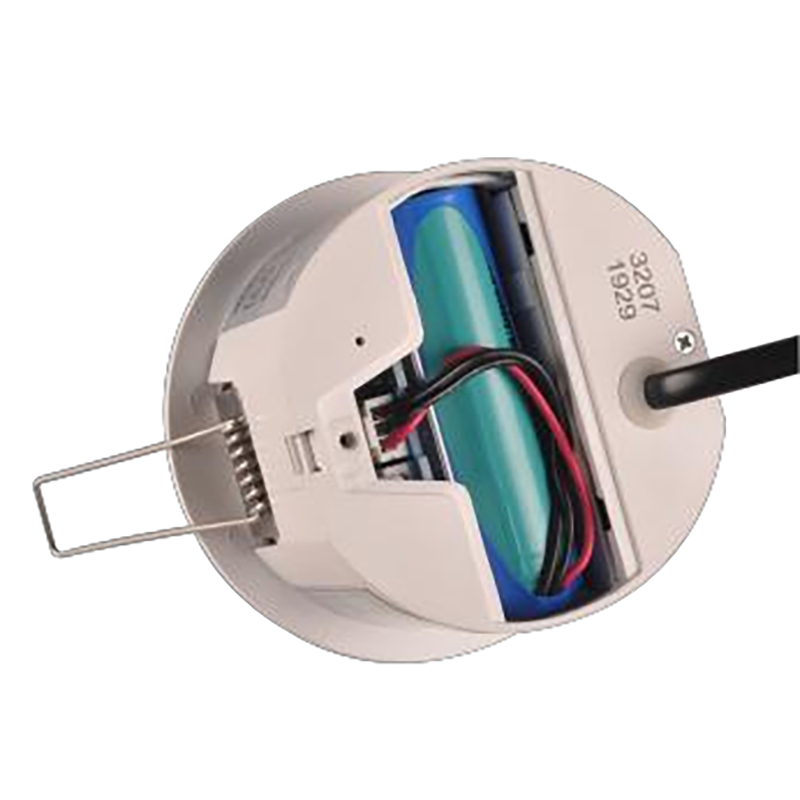

-Built in LiFePO4 battery
-Intelligent charge and discharge
-3 hours emergency duration
-OSRAM high power LED
-D40/D50/D63 emergency classification

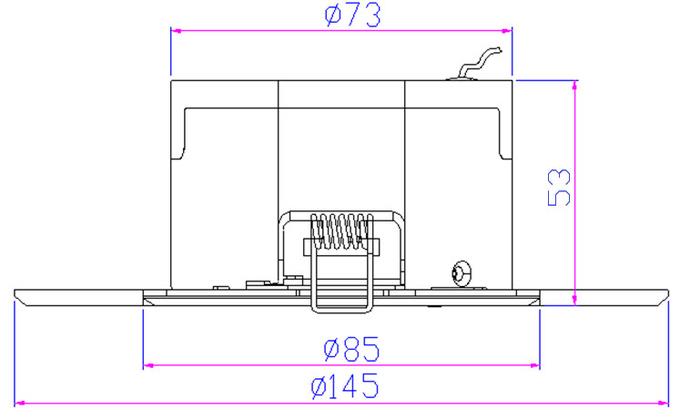

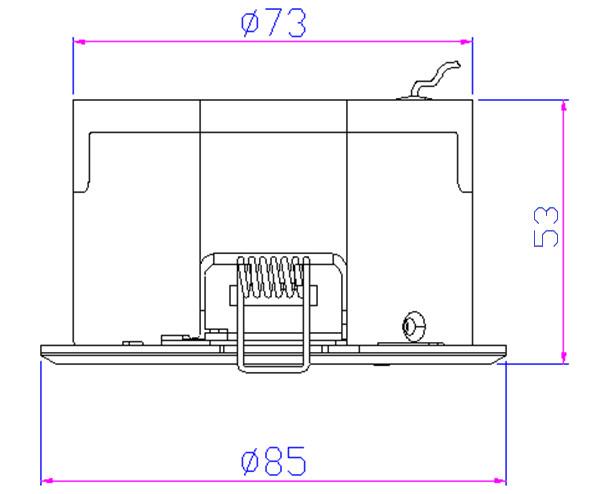

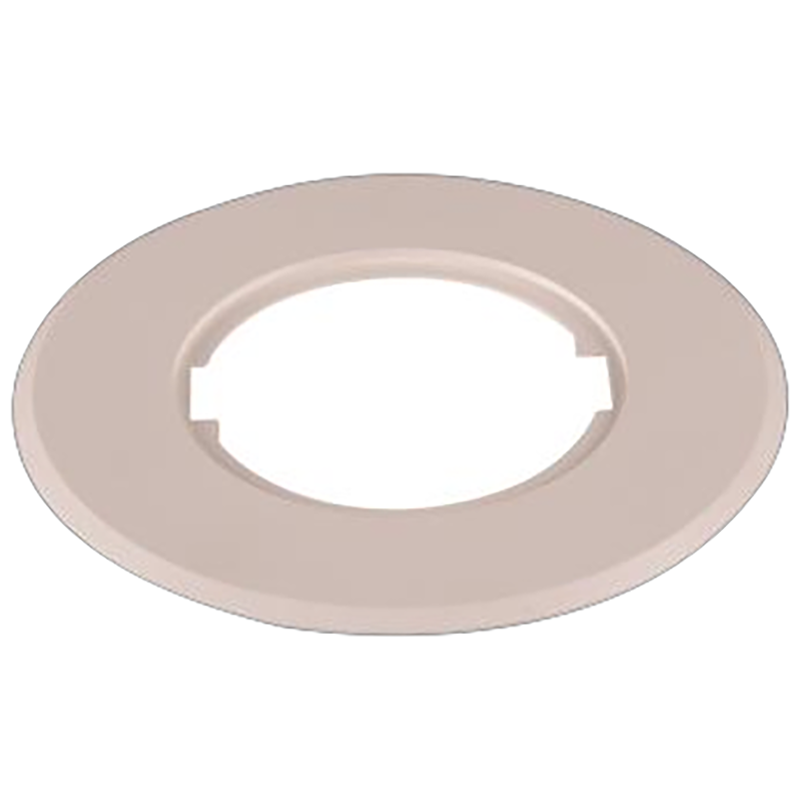

-Φ84mm small panel with Φ145mm trim
-Self-test version is optional

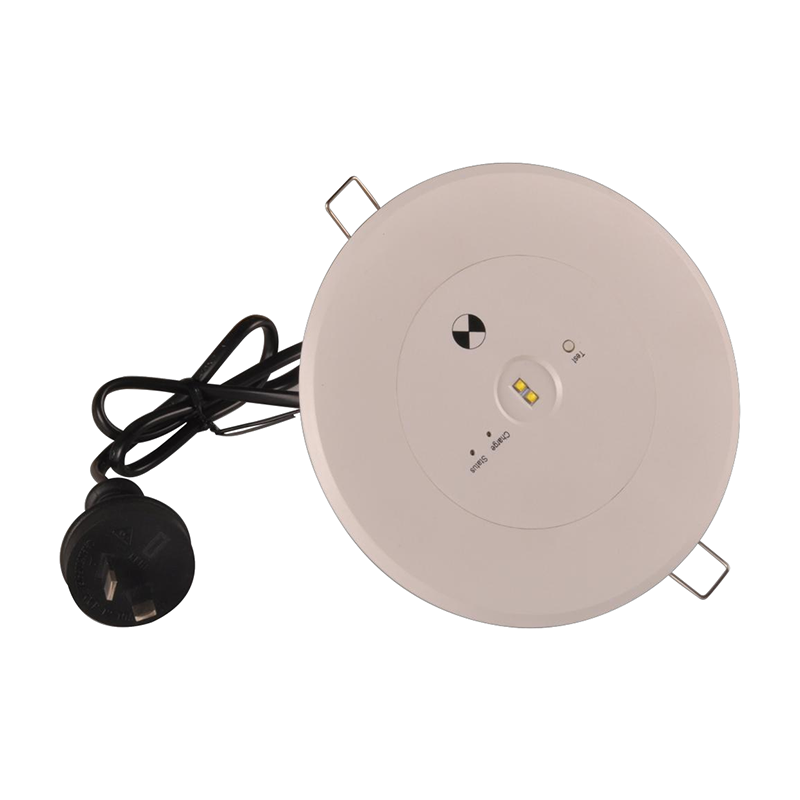

-With 1.2meter flex and plug

-Panel: PC+ABS, 850℃ glow wire test

Standard Compliance

-AS 60598.2.22
-AS/NZS 60598.1
-AS/NZS 60598.2.2

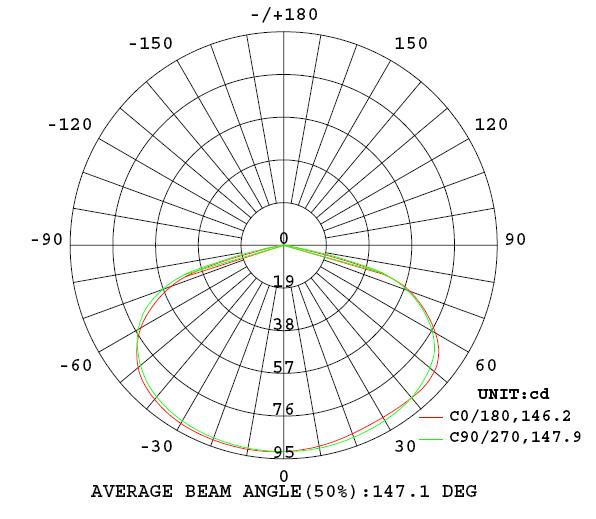

Photometric Datasheet


What Are Maintained Emergency Lights Types?

Maintained lights are illuminated all the time (24/7) for safety. This means that they switch to a battery-powered emergency output. Even if the power fails, the light will remain on.

This safety light is most commonly an LED, and it should illuminate an exit path and should be easily seen should there be a fire to provide the occupant's safety.

An emergency lighting system in continuous use is called a maintained system. These lighting systems typically remain illuminated 24/7, and each light has dual purposes - one as a regular emergency lamp and another as an emergency light. Maintained lighting systems are often used as escape route lighting and found in buildings such as hospitals or police stations.

What Are Non-Maintained Emergency Lights?

Non-maintained lights usually are not illuminated and will only turn on (illuminate) when the power fails. - The batteries are constantly being charged while ever there is power to the fitting. Power can be cut to a building in the event of a fire. Fire safety security alarm systems can control signs and luminaires. These fire safety systems require appropriate training, building signs and appropriate lighting.
