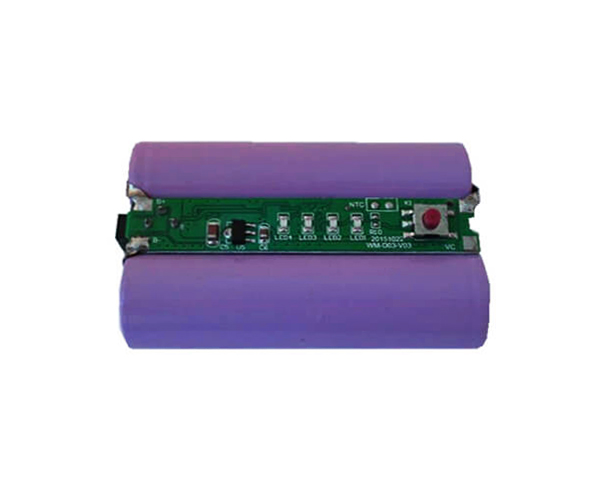

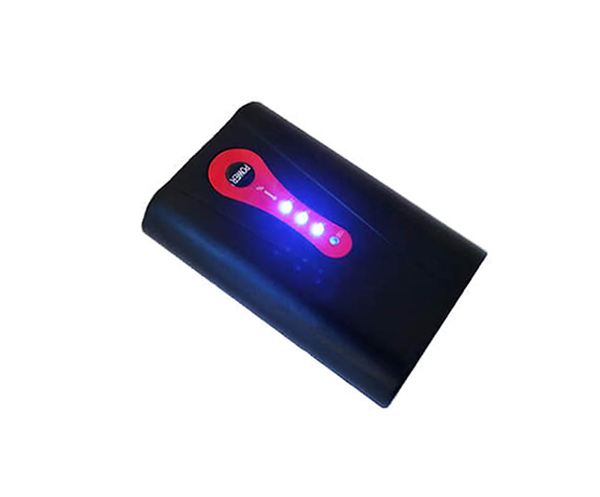

Heated Jack Li-ion Battery 7.4V 2200mAh
  • Heated Jack Li-ion Battery 7.4V 2200mAh
  • Heated Jack Li-ion Battery 7.4V 2200mAh
Heated Jack Li-ion Battery 7.4V 2200mAhHeated Jack Li-ion Battery 7.4V 2200mAh

Heated Jack Li-ion Battery 7.4V 2200mAh

    Brand Name: Godson or OEM

    Type: Li-ion Battery

    Model Number: GS-IFR7.4V-2200mAh

    Nominal Voltage: 7.4V

    Nominal Capacity: 2200mAh

    Place of Origin: Guangdong, China (Mainland)




Operating voltage range: 6V-8.4V

Charging voltage: DC 8.4V

Charging current: DC 1.0A

Standby current: ≤15μA

Maximum output power: Max 20W

Work efficiency: ≥99%

Load type and range: pure electrical impedance(4Ω-4KΩ)

Charging method: constant current and constant voltage (CC/CV)

Working temperature: -30°C~+60°C

Charging time: 2-3 hours (standard)

Charge and discharge times: 500-800 times

Self-consumption: 7.5-14.2uA

Internal resistance: The internal resistance of the protection board is less than 50mΩ, and the internal resistance of the battery is less than 150mΩ

Protection function: Over charge, over discharge, over current, over voltage protection circuit, short circuit protection, over temperature protection

Overcharge detection voltage: 8.4±25mV

Overcharge release voltage: 8.05±50mV

Overdischarge detection voltage: 5±80mV

Overdischarge release voltage: 6.0±100mV

Overcurrent detection voltage: 0.150±20mV

Smart lithium battery built-in temperature protection switch. When the battery temperature is 65-75 °C, the temperature protection circuit is turned on, and the smart lithium battery is turned off.

Size: 69mm (L) × 48mm (W)× 21mm (H)

Weight: 120g

Discharge temperature range: -30°C to +60°C

Charging temperature: -30°C to +40°C

At low temperature -30°C and high temperature +60°C, the discharge capacity is not less than 70% of the standard capacity
