  • LiMnO2 Battery CR123A 3.0V
  • LiMnO2 Battery CR123A 3.0V
LiMnO2 Battery CR123A 3.0V LiMnO2 Battery CR123A 3.0V

LiMnO2 Battery CR123A 3.0V

    Model No.: CR123A

    Description: Lithium Battery

    Chemical System: Lithium Maganese Dioxide

    Nominal Voltage: 3.0V

    Nominal Capacity: 1600mAh

    Dimensions: 17.0(D) * 34.5(H) mm

    Cell Weight: 16.5g

    Continuous Standard Load: 1mA

    Cut off Voltage: 2.0V

    Max. Continuous Discharge Current: 1500mA

    Max. Pulse Discharge Current: 3500mA

    Operating Temp. Range: -40~+60℃




Battery Testing:

CR123A  Discharge Characteristics


CR123A Pulse Discharge Characteristics


Battery Features:

■Long shelf life, which is more than 10 years;

■Wide operating temperature range from -60℃ to +85℃;

■Stable operating voltage and loading voltage;

■Available with small, medium and high pulse discharge current. Available

series including bobbin type, spiral type and battery packs.

■With unique performance in wet environment by adopting stainless steel

material, laser and hermetic glass-to-metal welding sealed;

■Long service life of above 5 years; Could be up to more than 10 years in

some special application;

■High energy density, could reach more than 650Wh/Kg, which is about 3-10

times of other series lithium battery;

■Complying with UL, SGS, CE, and UN38.3.


Application:

1. Signal lights and the post indicator transfer

2. Security system

3. Memorizer standby power

4. GPS location tracking device

5. Professional electronic equipment

6. Electronic toll collection systems

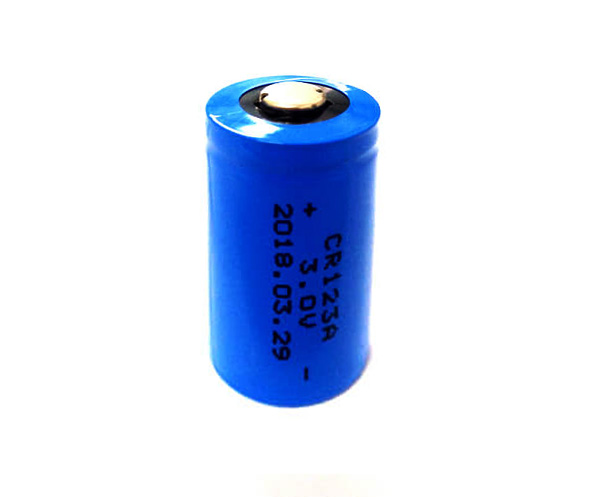

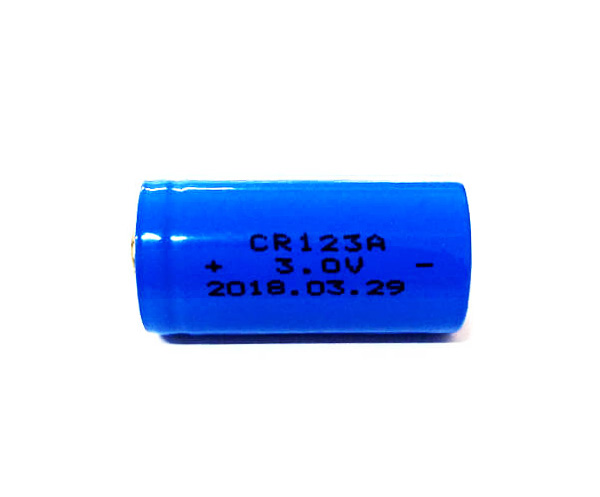

Battery Pictures:
