Ni-Cd Battery Pack D4000mAh 12V

    Model Number: 10GS-D400T-C

    Name: Ni-Cd Rechargeable Battery Pack D4000mAh 12V

    Place of Origin: Guangdong, China (Mainland)

    Type: NI-CD

    Size: D

    Configuration: Dual Stick

    Nominal Voltage: 12V

    Nominal Capacity: 4000mAh

Ni-Cd Rechargeable Battery Pack D4000mAh 12V

Standard Charge Current: 0.1C for 16 hours

Circle Life: ≥500 times

Operating Temperature: (-20℃) - (+70℃)

Storage Temperature: (-30℃) - (+60℃)

Cell Dimension: 33 +0 -1.0(D), 60.0+0 -1.5(H)

Cell Weight: ≈110g

Expected Life: 4 years

Packaging: Standard export package or customized package


Application:

1. Lighting: emergency lighting, emergency power supply, solar lights, searchlingts, flashlights

2.Power tools: electric drills, planers, saws, power granted

3. Electronic toys: remote control car, remote control boats, aircraft, model aircraft

4. Communication equipment: cordless phones, walkie-talkie

5. Other uses: electric shavers, massagers, electric tooth brush


Product performance:

1. High life. The Ni Cd battery can provide more than 500 charge and discharge cycles, and its service life is almost equal to the service life of the equipment using the battery.

2. Excellent discharge performance. In the case of high current discharge, nickel cadmium battery has low internal resistance and high voltage discharge characteristics, so it is widely used.

3. Long storage period. The Ni Cd battery has a long storage life and few restrictions, so it can be charged normally after long-term storage.

4. High rate charging performance. The nickel cadmium battery can be quickly charged according to the application needs, and the full charge time is only 1.2 hours.

5. Wide range temperature adaptability.Ordinary nickel cadmium batteries can be used in high or low temperature environment. High temperature batteries can be used at temperatures of 70 degrees Celsius or higher.

6. Reliable safety valve. The safety valve provides maintenance free function. Nickel cadmium battery can be used freely in the process of charge discharge or storage. Due to the special material used in the sealing ring and the effect of sealant, the leakage phenomenon of Ni Cd battery is rare.

7. A wide range of applications. The capacity of nickel cadmium battery ranges from 100mah to 7000mah. There are four types commonly used: standard type, consumer type, high temperature type and high current discharge type, which can be applied to any wireless device.

8. High quality and high reliability. Nickel cadmium battery is manufactured under very strict quality management and has excellent quality dependence.


Ni-Cd Battery Cell Performance:

1. Ni-Cd Cell Charge Curve At 0.1C For 16h At 55 Degree



2. Ni-Cd Cell Discharge Curve At 0.25C At 55 Degree



3. Ni-Cd Cell Charge Efficiency At Different Temperature



4. Ni-Cd Cell Capacity Change At Permanent Charge At 55 Degree (0.05C Floating)



5. Ni-Cd Cell Cycle Life Curve

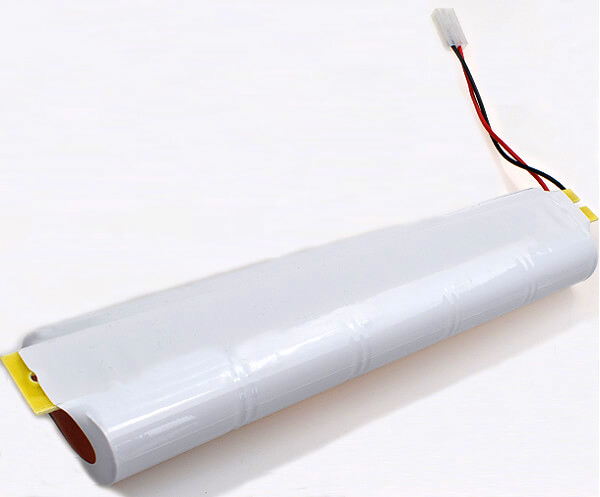

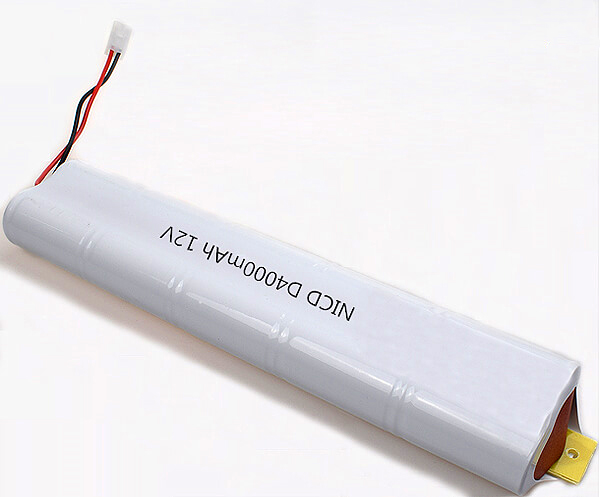

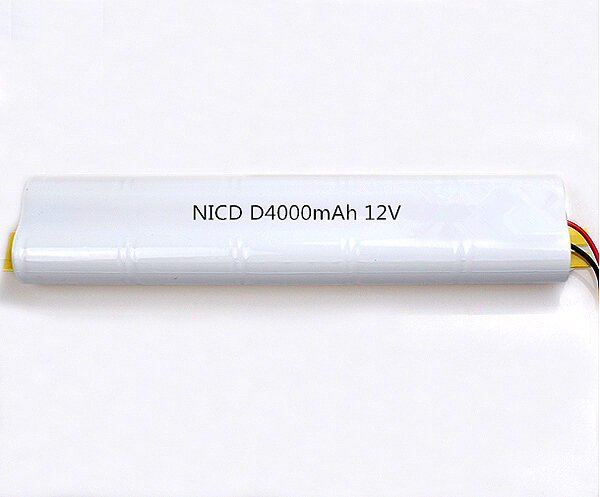

Battery Pictures:
