  • E-Bike Battery 48V 12Ah GS12
  • E-Bike Battery 48V 12Ah GS12
E-Bike Battery 48V 12Ah GS12 E-Bike Battery 48V 12Ah GS12

E-Bike Battery 48V 12Ah GS12

    Produc Name: E-bike Battery 48V 12Ah GS12

    Voltage: 48V
    Capacity: 10Ah - 20Ah
    Type: Lithium Battery

1. Product Description

Produc Name: E-bike Battery 48V 12Ah GS12

Color: Silver
Weight: 3.6KG
Charger: Include
Cell: NCR18650 PF
Four levers LED capacity indicator
30Amps high performance blade type discharge fuse
6Pins discharging plug with nickel-plating
Waterproof grade: IP65
Integrated with Spanninga Lineo rear light

2. Battery Specification: E-bike Battery 48V 12Ah GS12

Type

LiNiCoMn2O4 or Lifepo4

1. Basic Characteristics

Weight

≤ 5KG

Dimension(D*H)

107*75*390mm

Working temperature

Charge Temperature

0~45°C

Discharge Temperature

-20~65°C

Retention of charge (store in one month)

≥95%

2. Technical Data

Rated Voltage

48V

Rated Capacity C1

≥ 11.6Ah

Battery Resistance

≤100mΩ

Charge

Way of Charge

CC/CV
   (Constant Current; Constant Voltage)

Standard Charge Current

2A

Max Charge Current

5A

Max Charge Voltage

54.6V

Cell OverCharge Protection Voltage

4.2V/Cell

Discharge

Standard Discharge Current

15A can be customized

Max Discharge Current

20A can be customized

Discharge Cut-off Voltage

39V

Cell Overdischarge Protection Voltage

3.0V/cell

Ratio Discharge

1C

undefined96%C1

2C

undefined93%C1

3C

undefined90%C1

Cycle Life

≥ 500 Cycles

3. Safety Test

Short Circuit Safety Test

No fire, No explosion

Overcharge Safety Test

Crush Safety Test

Needling Safety Test

Extrusion Safety Test

130°C High Temperature Safety Test

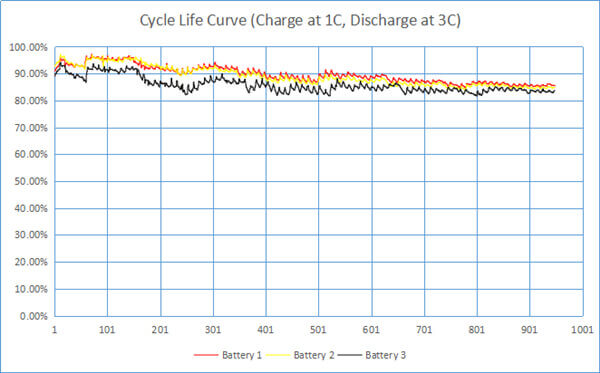

Cycle Life of E-bike Battery Cell
